The Focal Sub6 is an active subwoofer (1 x 350W RMS built-in amplifier – BASH technology) for professional monitoring systems. The driver is an 11″ Focal with a “W” sandwich composite cone loaded by a large section laminar port. It can be used both as LFE channel in a surround system or as a bass or sub-bass complement in a stereo system (2.1 or 2.2).

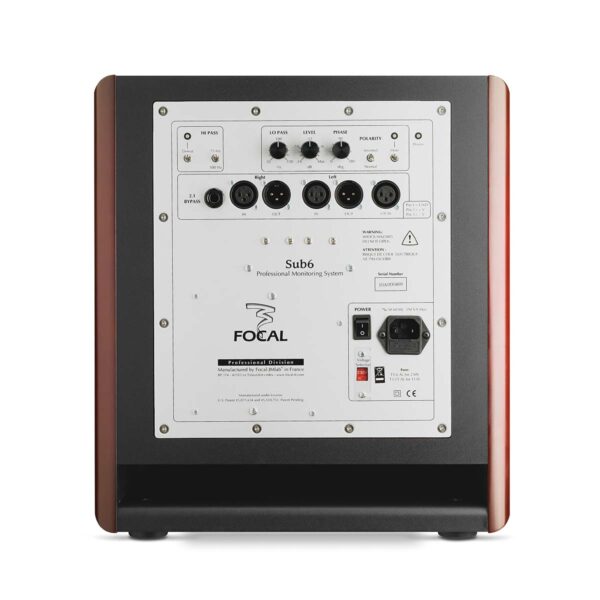

The Focal Sub6 was designed to permit optimum acoustic coupling with professional monitoring speakers. Therefore, it includes all the features to achieve this task, such as stereo high pass filter (75 or 100Hz) for the left and right satellites, low pass filter (adjustable) with mono summation, phase inverter, phase fine tuning, mute switch, 2.1 bypass with a footswitch remote control (not included), as well as a wiring panel rich in possibilities.
Footswitch: The ‘Little Extra’ which makes the Difference
A major advantage of the Focal Sub6 is its footswitch input. This allows you to connect a footswitch which cuts off the subwoofer and deactivates the high-pass crossovers on the outputs powering the monitors. The footswitch input enables you to compare the sound of a 2.1 set-up (Sub6 filtered + monitors filtered by the Sub6) with that of a 2.0 set-up (subwoofer deactivated + monitors in wideband mode). The two versions can be compared instantly, simply by pressing the footswitch: you barely have to move a muscle.
Focal Sub6 Technology
The “W” cone
Focal has been developing the technologies of composite sandwich cones for more than 15 years. The “W” process (Glass/Foam/Glass), used on the SM11, SM8 and SM6 lines, provides a true optimization of the frequency response by fine-tuning of mass, rigidity and damping parameters. The balance between these 3 fundamental and often contradictory parameters is at the base of the outstanding sound neutrality of our speakers.

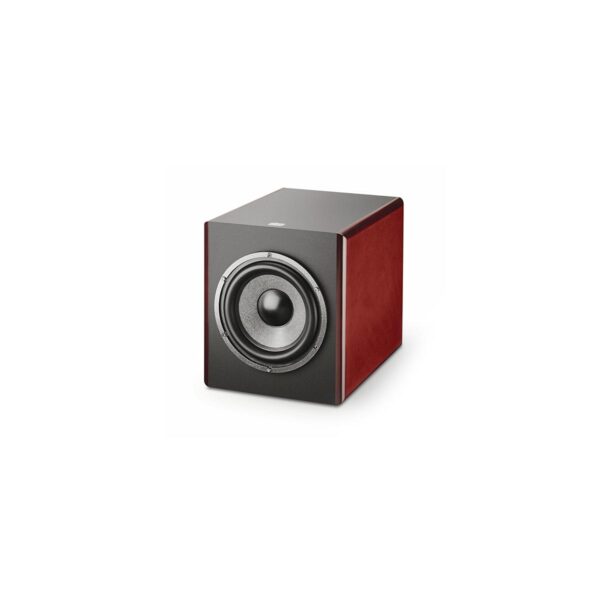

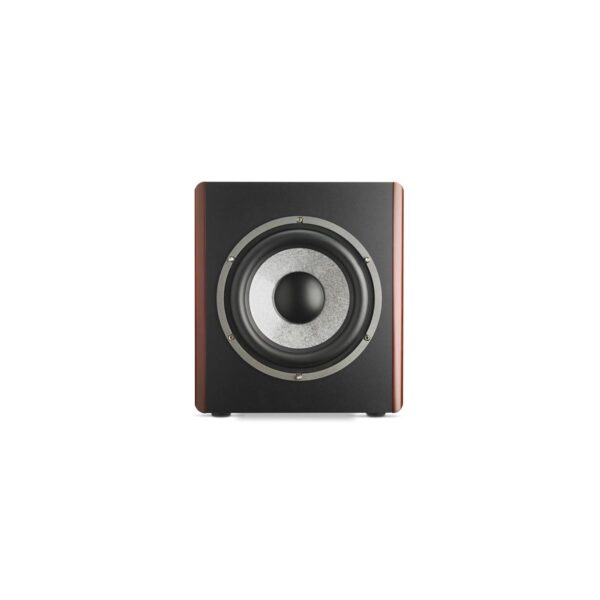

The 105/8″(27cm) Focal speaker is equipped with a high excursion system to enable accurate and extended reproduction in the bass/infra bass register. The 25/8″ (66mm) diameter and 11/4″ (32mm) height voice coil ensures a perfect mechanical coupling and a total control of the driver even at high sound level. The magnetic construction made of double ferrite and large field and back plates offers high symmetrical magnetic field to keep dynamics even at very low frequency.
A custom-designed amplification stage
Designing an amp to be integrated inside a speaker requires a very different set of rules than for a traditional amp. Speaker size and cooling concerns are often in contradiction with the high quality and high power requirements of a sonically transparent speaker. Our engineers used the BASH® technology to develop the bass/medium amplification circuit for the SM6 professional line of speakers. This was the only way to exploit the best of class AB style circuits
(for exceptional quality) with a class D type yield, which is crucial when housing a 150W RMS circuit in such a small space (300W RMS for the Twin6 Be and 350W RMS for the Sub6).
Buy Focal Sub6 11″ inch Active Studio Subwoofer at the best price in India from Audempire.
