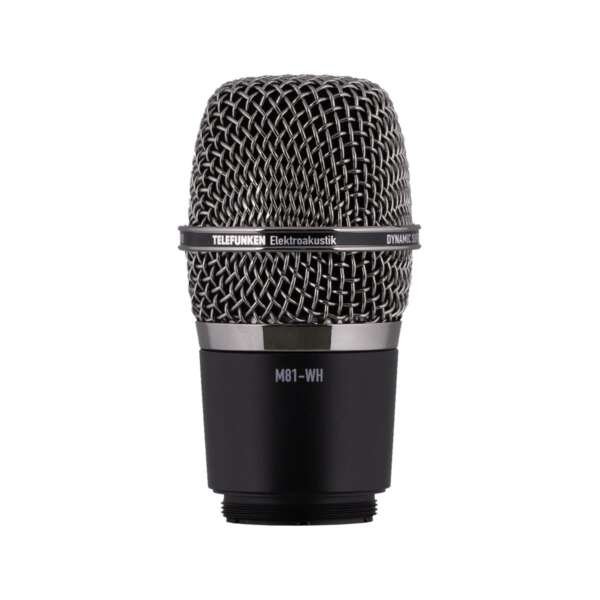

Telefunken M81-WH Wireless Capsule

23,872 (Incl. GST) 22,678 (Incl. GST)

  • Wireless Capsule for Telefunken M81 Dynamic Mic
  • Supercardioid Polar Pattern
  • 50 Hz – 18 kHz Frequency Range
  • 25mm Dynamic Moving Coil Capsule
  • TELEFUNKEN Elektroakustik T80 Transformer
  • 135 dB Maximum SPL (@ 1% THD)
SKU: C7BDC Category:

Description

The Telefunken M81-WH is the wireless capsule head variant of the M81 Univeral Dynamic. The wireless capsule is sonically identical to the M81 Standard and M81-SH and has the same condenser-like performance, minimal proximity effect, and superior feedback rejection one expects in TELEFUNKEN Dynamic Series microphones. The M81 Universal Dynamic retains articulate mid-range as the M80 Dynamic, however, the top end is pulled back a bit yielding a flatter overall frequency response.

The product features the same exact dynamic capsule, head grille, and output transformer all neatly packed within a capsule body that is ready to be mated to your wireless transmitter system of choice.

Telefunken M81-WH Wireless Capsule Compatibility

Compatible with the following transmitters:

  • Shure
    • Axient
    • UHF-R
    • QLXD
    • ULXD
    • ULX
    • PG
    • PGX
    • SLX
    • UR2
  • Lectrosonics
    • HH
    • HHa
  • Sony
    • UTX-M03

NOT COMPATIBLE with the following transmitters:

  • Shure
    • SLXD
    • BLX
    • GLXD
    • PGXD

The TELEFUNKEN Elektroakustik Dynamic Series microphones have rapidly become a new standard for live performance and stage use. In comparison to the M80, the TELEFUNKEN M81 retains the same minimal proximity effect, superior feedback rejection, and articulate mid-range, however, the top end is pulled back a bit, yielding a flatter overall frequency response, making it ideal for thinner sounding voices and signal sources.

Technical Specifications:

  • Type: Dynamic
  • Polar Pattern: Supercardioid
  • Frequency Range: 50 Hz – 18 kHz, ±3 dB
  • Capsule: 25mm Dynamic Moving Coil
  • Transformer: TELEFUNKEN Elektroakustik T80
  • Sensitivity: 1.54 mV/Pa, ±1 dB
  • Output Impedance: 325 Ω
  • Maximum SPL (for 1% THD): 135 dB
  • Dimensions/Size: 92 mm L x 48 mm Dia
  • Weight: 166 g

Buy Telefunken M81-WH Wireless Capsule at the best price in India from Audempire.

Additional information

Weight0.166 kg
Dimensions1.88 × 1.88 × 3.62 in
Microphone Type

Dynamic

Compatibility

Lectrosonics: HH, HHa, Shure Wireless; Axient, QLXD, ULXD, ULX, PG, PGX, SLX, UR2, UHF-R, Sony: UTX-M03

Polar Pattern

Supercardioid

Maximum Peak SPL

135dB SPL (1% THD)

Frequency Response

50Hz – 18kHz

Mono/Stereo

Mono

Capsule

25mm Dynamic Moving Coil

Transformer

TELEFUNKEN Elektroakustik T80

Sensitivity

1.54 mV/Pa

Output Load Impedance

325 Ω
