Novation Peak is an eight-voice desktop polyphonic synthesiser with three New Oxford Oscillators for each voice. The oscillators sound completely analogue by being high-quality NCOs (Numerically-Controlled Oscillators), but gain the flexibility of the digital domain with 17 digital wavetables. They can also become a linear FM source using either the analogue-sounding NCOs or digital wavetables – so are able to cross-modulate in a recursive loop.
The synth has a resonant multi-mode analogue filter for each voice, and three distortion points for each voice – pre-filter, post-filter and global – in an analogue signal chain. Peak is capable of receiving polyphonic aftertouch, which puts expression right at your fingertips. Reverb, delay and chorus effects are at one’s disposal, and there is also an on-board arpeggiator.
The modulation system puts a 16-slot modulation matrix and 16 direct assignments in the main controls, cleverly arranged for intuitive patch design and sound editing. There are three ADSR envelopes and two LFOs for each voice, and more elaborate movements and secondary ‘via’ assignments are made just a few menu button presses away. In addition, two animate buttons give live performers instant one-touch transformation of patches.
Novation Peak connects to modular systems via a CV modulation input, and has MIDI I/O on five-pin DIN ports, so other MIDI gear can be connected. Via USB, Peak can be plugged into Mac or PC, where unlimited patches can be kept using the Components software.
The Wavetable Editor unleashes the power of the wavetable oscillators. It features drawing tools and a Live Edit mode, so you can draw your own oscillator shapes and preview them in real time. Audio import lets you load in your own audio to be used as the oscillator waveform. Included is a curated selection of space-themed audio from the NASA sound library, plus exclusive content from production giants Noisia.
Key features of Novation Peak
Innovative New Oxford Oscillators using two waveform generating techniques: NCOs (Numerically-Controlled Oscillators) and 17 digital wavetables
Pre-filter and post-filter distortion per voice, plus global distortion. Polyphonic aftertouch and linear FM. High-quality reverb, delay and chorus effects, and onboard arpeggiator
Extensive modulation system, with 16-slot modulation matrix and 16 direct assignments controlled on the front panel. Three ADSR envelopes and two LFOs per voice, plus animate buttons
CV modulation input for integration with modular systems

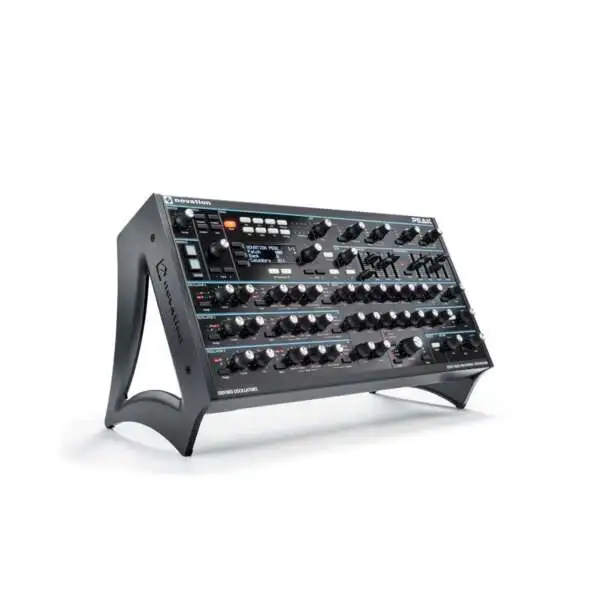

Compact desktop module design with optional die-cast aluminium stand for positioning (not included)
Key Highlights of Novation Peak Synth
Product Hardware Specifications
42 Control knobs
8 35mm Sliders
1 Volume knob
2 Data encoders
Rubberised knob caps with spun metal discs
30 Function buttons (not lit)
16 Function buttons (lit)
2 Animate buttons plus hold button
90 Indicator LEDs
Kensington Security Slot

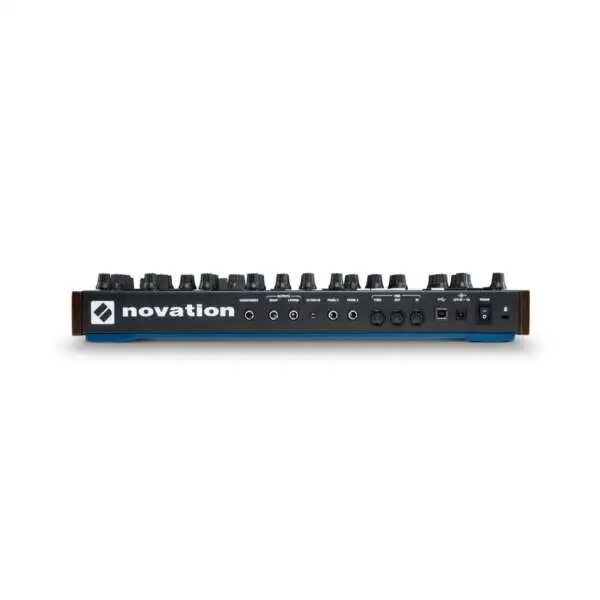

Power supply connector
MIDI In / Out / Thru
2 1/4″ jack socket for continuous or switched pedals
3.5mm jack socket for CV in
1/4″ jack sockets for left and right outputs
1/4″ jack socket for headphone output
Metal chassis with wooden end cheeks
Metal magnetic inset end pieces
8 note polyphony (dependent on voices used per note)
1 noise generator
1 ring modulator
1 Amp envelope and 2 mod envelopes
Sine, tri, sawtooth, square / pulse plus 17 wavetables of 5 waveforms per row
1 x State variable OTA filter per voice
Low-pass / band-pass / high-pass
16 modulation slots per patch
Each slot has 2 sources to 1 destination
Buy Novation Peak Polyphonic Desktop Synthesizer at the best price in India from Audempire.
9.17 × 18.27 × 2.78 in
5 x Voice Modes, 8 Notes
17 Digital Wavetables, 3 x New Oxford Numerically Controlled Oscillators
Sawtooth, Sine, Square Pulse Width, Triangle
1 x Amp Envelope, 2 x Mod Envelope
2 x LFO
1 x Variable OTA Filter, 12/24dB Slope, Bandpass, Highpass, Lowpass
Chorus, Delay, Distortion, Reverb
33 Patterns, Yes
2 x 1/4"
1 x 1/4" TRS
In, Out, Thru, USB
CV modulation in
2 x 1/4"
1 x USB (Type-B)
Ableton Live Lite
12V DC power supply (included)
