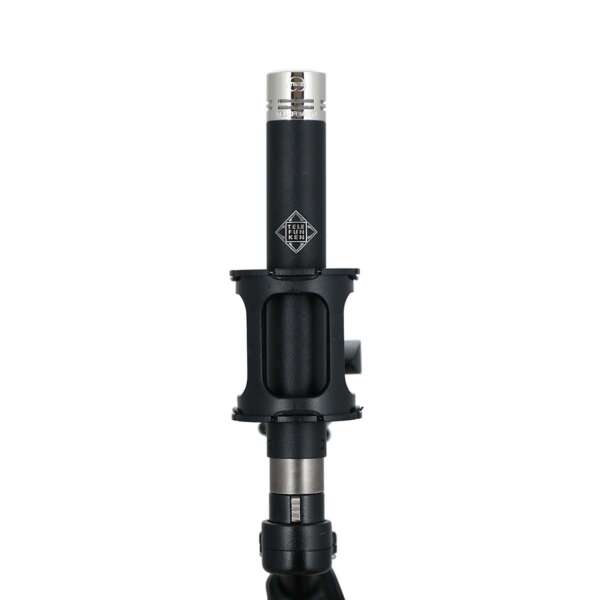

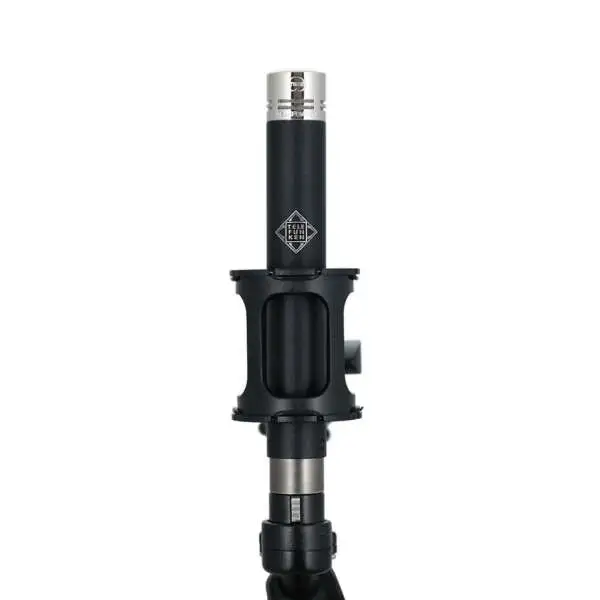

Telefunken M60 FET Cardioid Small-diaphragm Condenser Microphone

62,200 (Incl. GST) 59,090 (Incl. GST)

  • Small Diaphragm Condenser Microphone
  • TK60 – Edge Terminated Small Diaphragm Capsule
  • TELEFUNKEN Elektroakustik T61CT Transformer
  • 120 dB Output Impedance
  • 20 Hz – 20 kHz Frequency Range
  • 130 dB Max SPL (1% THD)
SKU: 18V19 Category:

Description

The Telefunken M60 FET Cardioid package includes one M60 amplifier paired with a TK60 cardioid polar pattern capsule.  The TK60 features a 6-micron gold-sputtered membrane measuring 15mm in diameter, with a surprisingly full low end, and a quick and accurate transient response.  The frequency response is flat from 150 Hz to 7 kHz, with a smooth, airy presence peak at 8 kHz making it ideal for drum overheads, hi-hat and ride cymbals, piano, acoustic guitar, and other acoustic instruments.

Sonic Characteristic

The M60 FET’s incredibly quick transient response captures nuances and subtleties with impressive precision and clarity. This results in an extremely detailed sonic image with definition and presence, perfectly suited for the complex character of stringed instruments and percussive sources.

Circuit Design

Utilizing a unique proprietary circuit topology, this re-interpretation of the classic FET mic amplifier produces an exceptional transient response and SPL handling capabilities. Carefully selected and tested components are hand-plugged into gold-plated circuit board traces to provide an ultra-clean true Class A discrete amplifier with a frequency response of +/- 2dB from 20 Hz to 50 kHz. The output is matched with a custom American-made transformer that offers an especially low self-noise and a typical THD+N of 0.015% or better, making it ideal for critical recording applications.

Construction

The Telefunken M60 FET Cardioid amplifier body is finished in a durable, lightly textured black powder coat adorned with the historic TELEFUNKEN diamond badge. The microphone’s XLR connector shell complements the look with a matte black nickel-plated finish engraved with the model and serial number. The TK6x capsules feature a bright nickel-plated enclosure with a fine gold mesh pattern.

Accessories

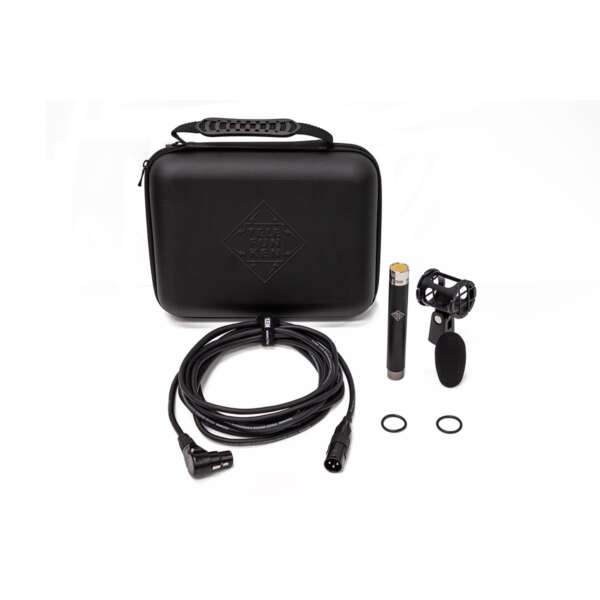

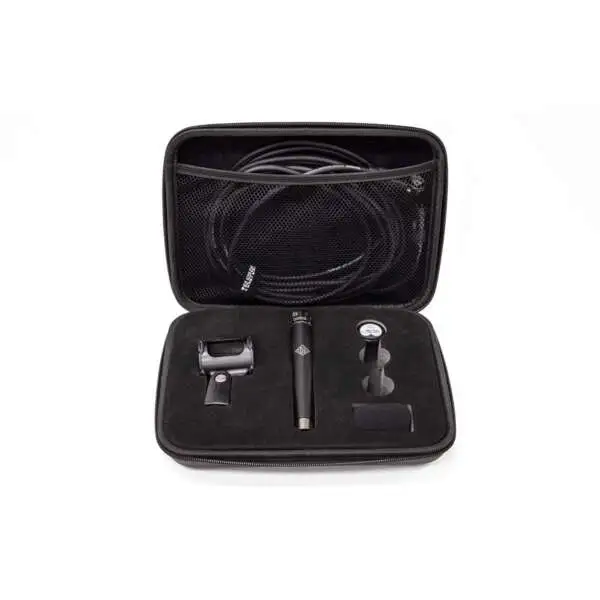

The Telefunken M60 FET Cardioid Microphone ships complete with a SGMC-5R 5-meter XLR cable with right angle female connector, M761 elastic shock mount, and a foam windscreen, all packed in an ZC61 zipper carrying case.

Technical Specifications of Telefunken M60 FET Cardioid

  • Type: FET Condenser
  • Polar Pattern: Cardioid
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: +48V Phantom Power
  • Capsule: TK60 – Edge Terminated Small Diaphragm, Thread-on
  • Transformer: TELEFUNKEN Elektroakustik T61CT
  • Sensitivity: 8.6 mV/Pa, ±1 dB
  • THD at 1kHZ at 1Pa (Amplifier): < 0.01%
  • Output Impedance: 120 dB
  • Maximum SPL (for 1% THD): > 130 dB
  • S/N Ratio: 89 dBA
  • Self Noise (Amplifier): 5 dBA
  • Dimensions: 140 mm L x 20 mm Dia
  • Weight: 110 g
  • Included Accessories: Right Angle XLR Cable, Shock Mount, Foam Windscreen, Carrying Case

Buy Telefunken M60 FET Cardioid Small-diaphragm Condenser Microphone at the best price in India from Audempire.

Additional information

Weight0.110 kg
Dimensions0.78 × 0.78 × 5.51 in
Microphone Type

FET Condenser

Mono/Stereo

Mono

Polar Pattern

Cardioid

Diaphragm Size

15mm

Frequency Response

20Hz – 20kHz

Maximum Peak SPL

130dB SPL (1% THD)

Output Load Impedance

120 Ω

Signal-to-Noise Ratio

89 dBA

Self Noise

5 dBA

Capsule

TK60 – Edge Terminated Small Diaphragm

Transformer

TELEFUNKEN Elektroakustik T61CT

Sensitivity

8.6 mV/Pa

Distortion

<0.01% THD at 1kHZ at 1Pa (Amplifier)

Connector

XLR

Power Source

48V phantom power

Included Accessories

Carrying Case, Foam Windscreen, Right Angle XLR Cable, Shockmount

Brand

Telefunken
