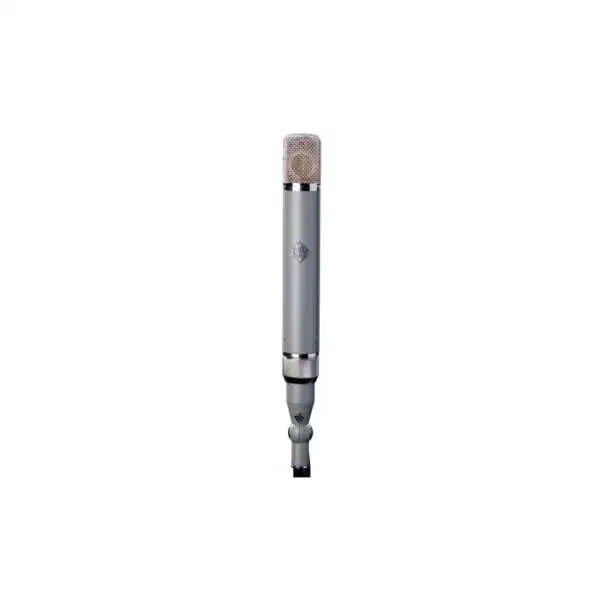

Telefunken C12 Large-diaphragm Tube Condenser Microphone

1,018,737 (Incl. GST) 967,800 (Incl. GST)

  • Vacuum Tube Mic with 1″ Diaphragm Capsule Design
  • 9 Variable Polar Patterns
  • Power Supply
  • Shock Mount
  • Wooden Box
  • Flight Case

Available on backorder

SKU: 6951T Category:

Description

Telefunken C12 Inspiration: If there were ever a microphone that was the epitome of classic, hi-fidelity sound, it would be the Austrian-designed C12. Originally developed by AKG Acoustics in 1953, the C12 is revered for its smooth, airy frequency response. The design of the C12 was unique in its remote capsule polarizing technology. The ability to change the capsule’s polar response variably between cardioid, omnidirectional, and figure 8 (and six intermediate patterns between) from the power supply instead of with switches on board the microphone made the C12 the one of most versatile large-diaphragm tube microphone of its time. Considered by many to be the finest sounding microphone ever produced, original C12 microphones are still in use in recording studios throughout the world.

Sonic Characteristic

The large diaphragm vacuum tube-based Telefunken C12 is a fantastic choice for all types of instruments, lending itself especially well to drum overheads, acoustic guitar, and vocals. Its silky smooth top end provides plenty of air without sounding harsh or artificial. The midrange speaks clearly and articulately, capturing the source with a natural presence. Its low end is tight and focused, perfectly balanced with the rest of the frequency range.

Circuit Design

At the heart of every C12 microphone is Telefunken’s coveted CK12 capsule, handcrafted in-house by experienced technicians with meticulous attention to detail. Years of work went into reverse-engineering this legendary capsule design, with backplates machined to match the originals and diaphragms tuned and glued by hand. The amplifier circuit utilizes a German-made Haufe T14 output transformer built to match the original, driven by a microphone grade 6072a vacuum tube. Telefunken’s circuit design builds upon the original with the implementation of cathode self-biasing operation, a configuration that is quieter, more consistent over the lifetime of the tube, and requires less power supply calibration than the original fixed-bias configuration.

Construction

Every part of the Telefunken C12 microphone has been reverse-engineered and recreated to preserve the impressive point-to-point construction and aesthetic of the original. This elegant and open design cascades beautifully from top to bottom, revealing every detail of what is truly a handmade instrument. Headgrilles, connectors, capsule mounts, plastic decks, and more are all compatible with vintage AKG C12s in need of service. Coveted by an extensive list of professional recording engineers, the TELEFUNKEN Elektroakustik C12 historic reissue is an exceptional microphone that will be a treasured addition to your microphone collection for many decades to come.

Accessories

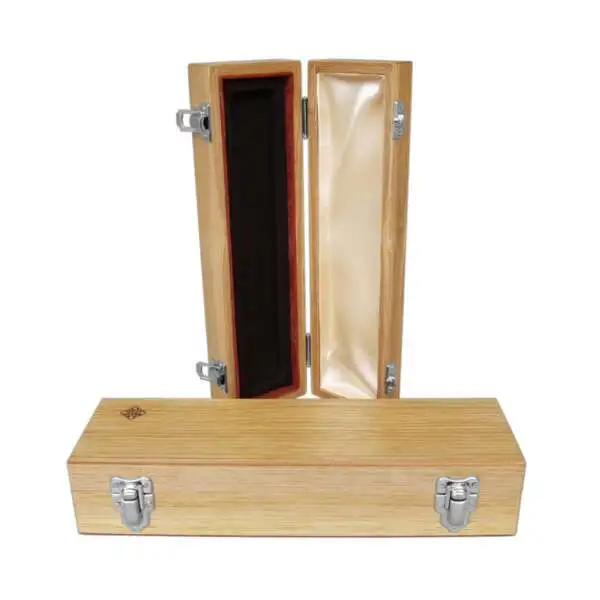

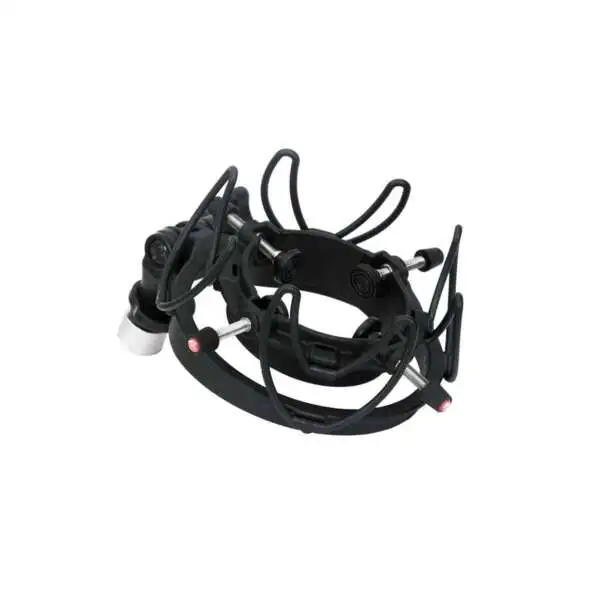

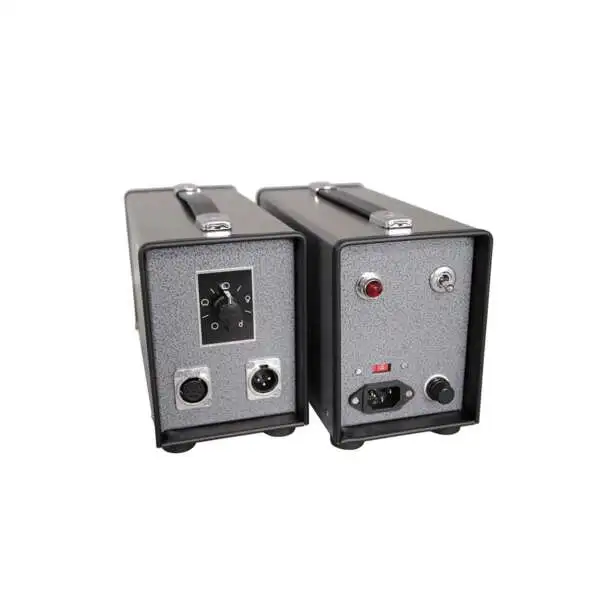

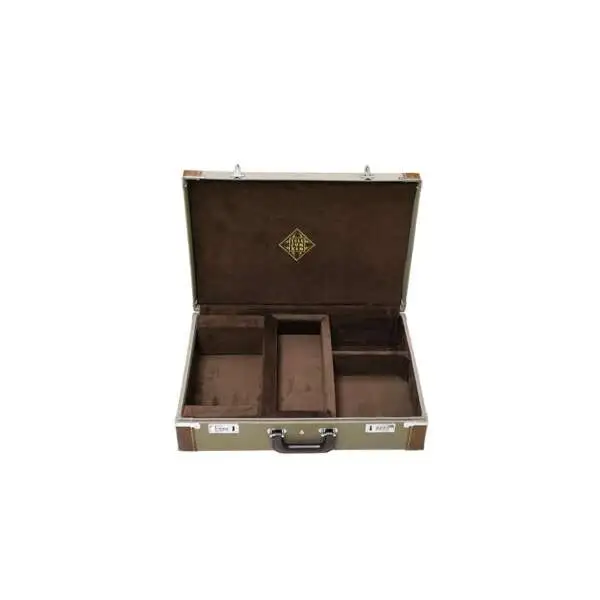

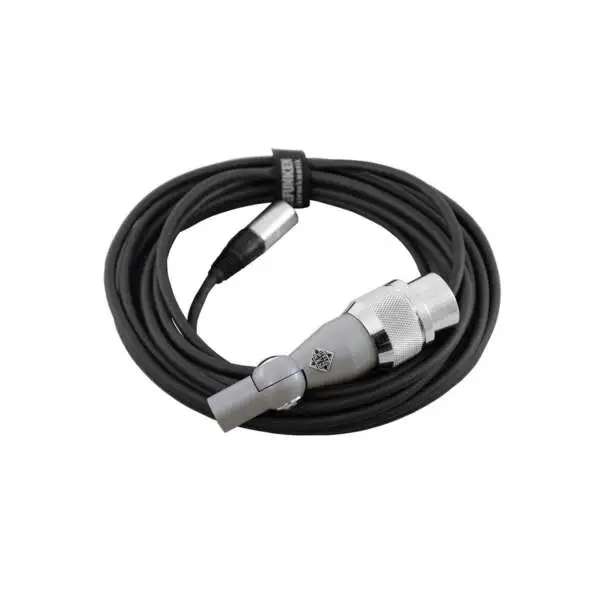

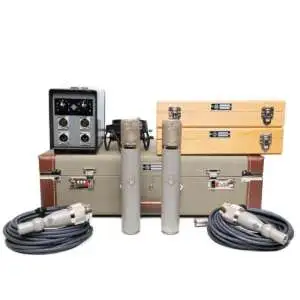

Each Telefunken C12 microphone comes complete with M 910 power supply, M 810 25’ Sommer tube microphone cable, Rycote shockmount, FC10 locking flight case, and WB10 wooden microphone box.

Telefunken C12 Technical Specifications

  • Type: Vacuum Tube Condenser
  • Polar Pattern: 9-Pattern Variable including Cardioid, Omnidirectional, Figure-8
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: External Power Supply
  • Capsule: TELEFUNKEN Elektroakustik CK12 – Edge Terminated Large Diaphragm
  • Tube: TELEFUNKEN Elektroakustik 6072A
  • Transformer: Haufe T14/1
  • Sensitivity: 10 mV/Pa, ±1 dB
  • THD at 1kHZ at 1Pa (Amplifier): < 0.25%
  • Output Impedance: 200 Ω
  • Maximum SPL (for 1% THD): 130 dB
  • S/N Ratio: 85 dBA
  • Self Noise (Amplifier): 9 dBA
  • Dimensions: 250 mm L x 42.5 mm Dia
  • Weight: 567 g
  • Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Wooden Box, Flight Case

Buy Telefunken C12 Large-diaphragm Tube Condenser Microphone at the best price in India from Audempire.

Additional information

Weight0.567 kg
Dimensions1.673 × 1.673 × 9.842 in
Microphone Type

Vacuum Tube Condenser

Polar Pattern

Cardioid, Figure-8, Omnidirectional

Diaphragm Size

1" (25.4mm)

Frequency Response

20Hz – 20kHz

Maximum Peak SPL

130dB SPL (1% THD)

Output Load Impedance

200 Ω

Tube

TELEFUNKEN Elektroakustik 6072a

Capsule

CK12 – Edge Terminated Large Diaphragm

Transformer

Haufe T14/1

Sensitivity

10 mV/Pa

Signal-to-Noise Ratio

85 dBA

Self Noise

9 dbA

Power Supply

External M 910 power supply

Connector

XLR

Brand

Telefunken
