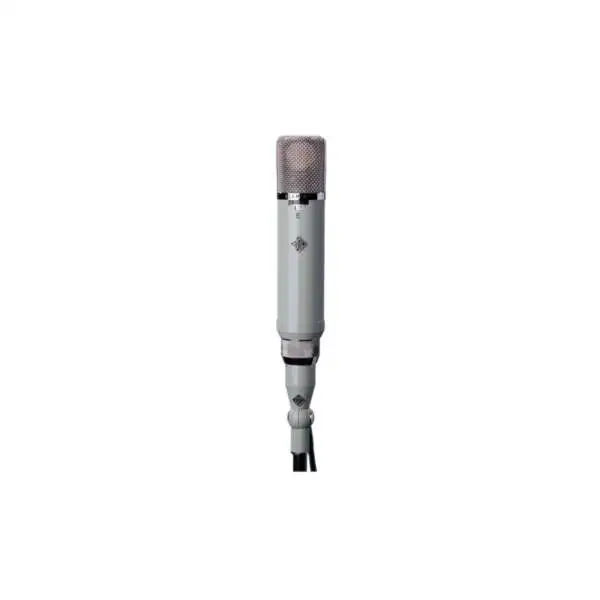

Telefunken ELA M 251E Large-diaphragm Tube Condenser Microphone

1,075,367 (Incl. GST) 1,021,599 (Incl. GST)

  • Large-diaphragm Tube Condenser Mic with Cardioid, Omni, and Figure-8 polar patterns

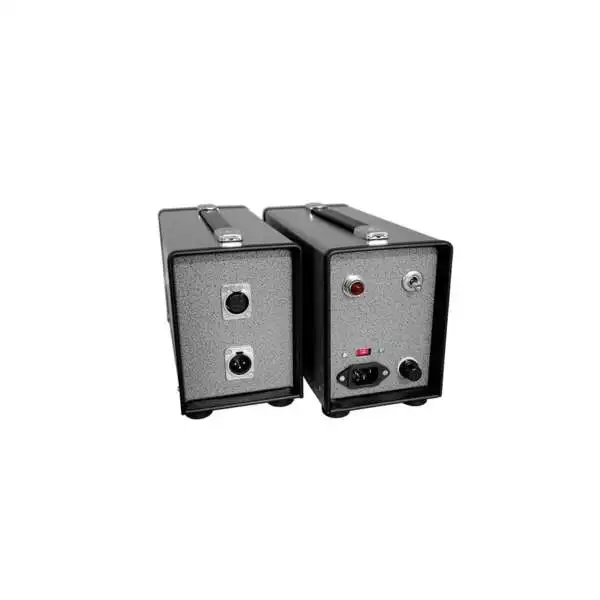

  • M 950E power supply

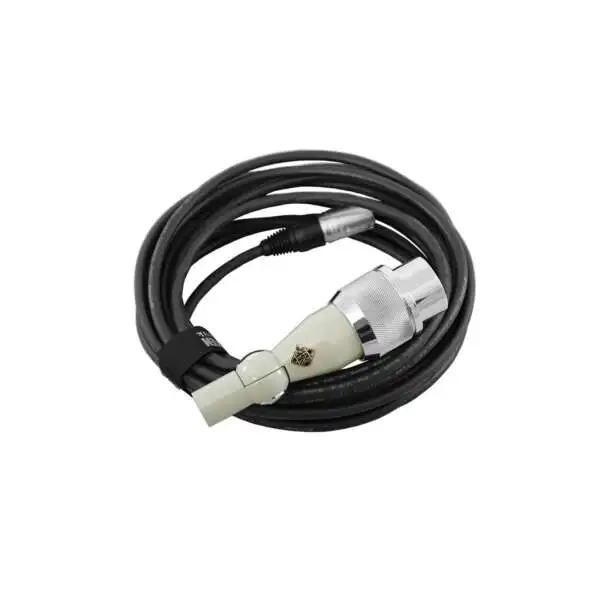

  • M 850E 25’ Sommer tube microphone cable

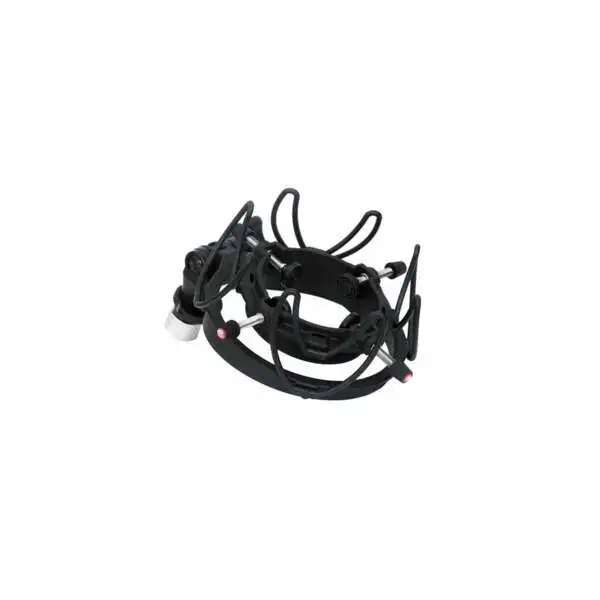

  • Rycote shockmount

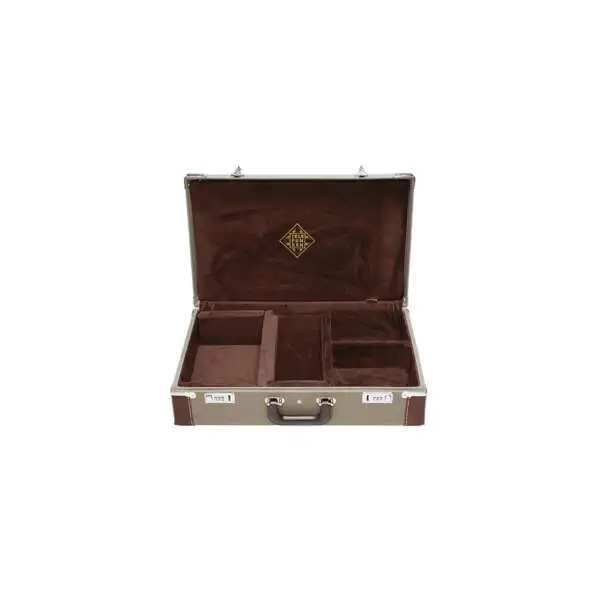

  • FC50 locking flight case
  • WB50 wooden microphone box

Available on backorder

SKU: D6712 Category:

Description

Arguably one the most beautiful microphones ever produced, the TELEFUNKEN ELA M 251E has been featured on countless hits and classic recordings over the decades. Today, prime examples of vintage ELA M 250 / 251 (both “E” and “non E”) microphones have become rare and highly sought after jewels, commanding tens of thousands of dollars on the vintage market. TELEFUNKEN Elektroakustik’s historic recreations of the ELA M 251E exemplify the best qualities of the finest specimens of these legendary beasts, and they are true to the heritage of their 50+ year old brethren.

Sonic Characteristic

By virtue of its smooth, yet present and open sonic character, the ELA M 251E large diaphragm tube microphone is a true classic with very few rivals. Ideal for vocals and acoustic instruments, the ELA M 251E offers an extended and focused low end, a detailed mid-range response and a silky top-end.

Circuit Design

The TELEFUNKEN ELA M 251E includes an edge terminated, dual backplate CK12 capsule capable of cardioid, omnidirectional and bidirectional polar patterns, a 6072A vacuum tube and a Haufe T14/1 output transformer (the same found in the AKG Acoustics GmbH C12). Modern component choices allow for tighter tolerance specifications, better current handling and a lower self-noise than their vintage counterpart. Each reissue is 100% true in every detail to the original (the parts are interchangeable with the 50+ year old originals), and will deliver the same sonically opulent response that made the ELA M 251E one of the world’s most sought after recording tools.

Construction

The TELEFUNKEN Elektroakustik recreation of the ELA M 251E large diaphragm tube microphone is exact in every detail, down to the historically accurate cosmetic finish and structural design. The amplifier circuit containing the vacuum tube and output transformer is housed in a molded plastic enclosure, while the capsule is suspended upon a moving polar pattern switch within the head grille. The classic diamond shaped TELEFUNKEN logo badge is attached to the front of the microphone with the ELA M model name engraved at the base of the headgrille.

Included Accessories

Each Telefunken ELA M 251E microphone comes complete with M 950E power supply, M 850E 25’ Sommer tube microphone cable, Rycote shockmount, FC50 locking flight case and WB50 wooden microphone box.

Technical Specifications of Telefunken ELA M 251E

  • Type: Vacuum Tube Condenser
  • Polar Pattern: Cardioid, Omnidirectional, Figure-8
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: External Power Supply
  • Capsule: TELEFUNKEN Elektroakustik CK12 – Edge Terminated Large Diaphragm
  • Tube: TELEFUNKEN Elektroakustik 6072A
  • Transformer: Haufe T14/1
  • Sensitivity: 17 mV/Pa, ±1 dB
  • THD at 1kHZ at 1Pa (Amplifier): < 0.2%
  • Output Impedance: 200 Ω
  • Maximum SPL (for 1% THD): 130 dB
  • S/N Ratio: 85 dBA
  • Self Noise (Amplifier): 9 dBA
  • Dimensions: 216 mm L x 50 mm Dia
  • Weight: 596 g
  • Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Wooden Box, Flight Case

Buy Telefunken ELA M 251E Large-diaphragm Tube Condenser Microphone at the best price in India from Audempire.

Additional information

Weight0.596 kg
Dimensions1.968 × 1.968 × 8.503 in
Microphone Type

Vacuum Tube Condenser

Polar Pattern

Cardioid, Figure-8, Omnidirectional

Diaphragm Size

1" (25.4mm)

Frequency Response

20Hz – 20kHz

Maximum Peak SPL

130dB SPL (1% THD)

Output Load Impedance

200 Ω

Tube

TELEFUNKEN Elektroakustik 6072a

Capsule

CK12 – Edge Terminated Large Diaphragm

Transformer

Haufe T14/1

Sensitivity

17 mV/Pa

Signal-to-Noise Ratio

85 dBA

Self Noise

9 dbA

Power Supply

External M 950E Power Supply

Connector

XLR

Brand

Telefunken
