Telefunken ELA M 251T Large-diaphragm Tube Condenser Microphone

1,131,991 (Incl. GST) 1,075,391 (Incl. GST)

  • Large-diaphragm Tube Condenser Mic with Cardioid, Omni, and Figure-8 polar patterns
  • Elektroakustik CK13 Capsule
  • Haufe T14/1 Transformer
  • NOS Siemens ECC801S Tube
  • Tube Mic Cable, Power Supply, Shock Mount, Wooden Box, Flight Case

Available on backorder

SKU: 6299S Category:

Description

TELEFUNKEN Elektroakustik introduces the new ELA M 251T, a microphone featuring the newly developed CK-13 capsule. While based upon the classic ELA M 251 models, the ELA M 251T adds a very modern twist. That twist is the implementation of Alloy 2213 as the diaphragm membrane material for the CK-13 capsule. Alloy 2213 is an amalgam of Titanium and Aluminum, which was originally developed for the aerospace industry.

Sonic Characteristic

Traditionally gold has been sputtered onto Mylar for the diaphragms of the historic CK-12 capsule. By employing Alloy 2213, which is far more rigid than gold, the capsule that provides greater accuracy in the low-frequency range by attaining a higher damping factor to the motion of the membrane. Alloy 2213 is lighter than gold, and when combined with the edge terminated CK-12 system provides an “airy” and “delicate” representation of the upper frequencies. This affords the user a higher degree of detail in the recorded sound while still providing the depth of audio for which ELA M 251 microphones have been associated for decades.

Circuit Design

The TELEFUNKEN ELA M 251T includes an edge terminated, dual backplate CK13 capsule, a variation of the traditional CK12. The 251T is capable of cardioid, omnidirectional, and bidirectional polar patterns, just like the ELA M 251E. The amplifier circuit features a premium New Old Stock ECC801S vacuum tube and a Haufe T14/1 output transformer, the same found in the 251E and C12.

Construction

Though the 251T shares the same basic vintage-accurate construction of the 251E, it is wrapped in a sleek sulfamate nickel-plated finish to reflect the proprietary capsule technology.

Accessories

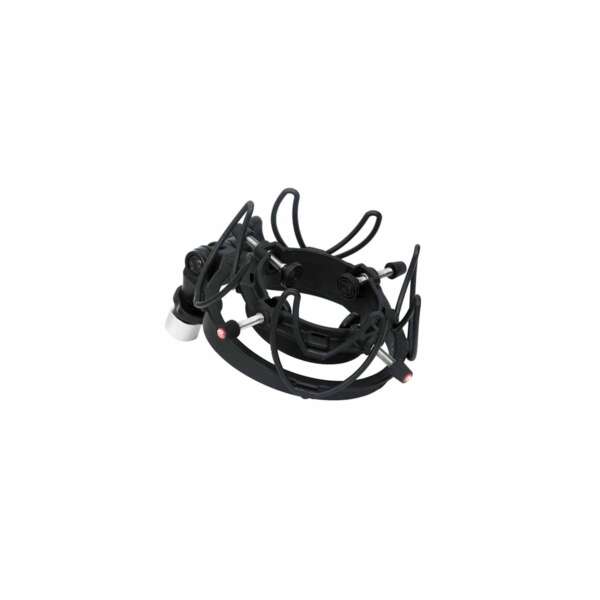

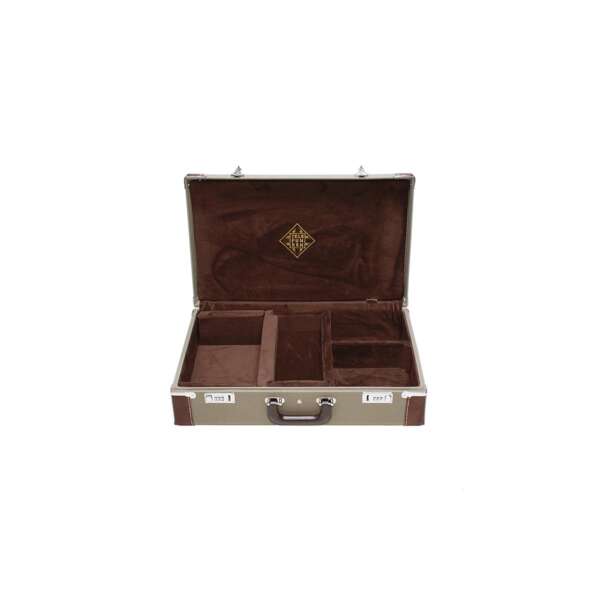

Each Telefunken ELA M 251T microphone comes complete with M 950T power supply, M 850T 25′ Sommer tube microphone cable, Rycote shockmount, FC50 locking flight case, and WB50 wooden microphone box.

Technical Specifications of Telefunken ELA M 251T

  • Type: Vacuum Tube Condenser
  • Polar Pattern: Cardioid, Omnidirectional, Figure-8
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: External Power Supply
  • Capsule: TELEFUNKEN Elektroakustik CK13 – Edge Terminated Large Diaphragm
  • Tube: NOS Siemens ECC801S
  • Transformer: Haufe T14/1
  • Sensitivity: 11.5 mV/Pa, ±1 dB
  • THD at 1kHZ at 1Pa (Amplifier): < 0.15%
  • Output Impedance: 200 Ω
  • Maximum SPL (for 1% THD): 132 dB
  • S/N Ratio: 87 dBA
  • Self Noise (Amplifier): 7 dBA
  • Dimensions: 216 mm L x 50 mm Dia
  • Weight: 596 g
  • Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Wooden Box, Flight Case

Buy Telefunken ELA M 251T Large-diaphragm Tube Condenser Microphone at the best price in India from Audempire.

Additional information

Weight0.596 kg
Dimensions1.968 × 1.968 × 8.503 in
Microphone Type

Vacuum Tube Condenser

Polar Pattern

Cardioid, Figure-8, Omnidirectional

Diaphragm Size

1" (25.4mm)

Frequency Response

20Hz – 20kHz

Maximum Peak SPL

132dB SPL (1% THD)

Output Load Impedance

200 Ω

Tube

NOS Siemens ECC801S

Capsule

CK13 – Edge Terminated Large Diaphragm

Transformer

Haufe T14/1

Sensitivity

11.5 mV/Pa

Signal-to-Noise Ratio

87 dBA

Self Noise

7 dBA

Power Supply

External M 950E Power Supply

Connector

XLR

Brand

Telefunken
