Home » Shop » Studio & Recording » Microphones » Condenser Microphones » Telefunken » Diamond » Telefunken ELA M 251E Stereo Set Large-diaphragm Tube Condenser Microphone

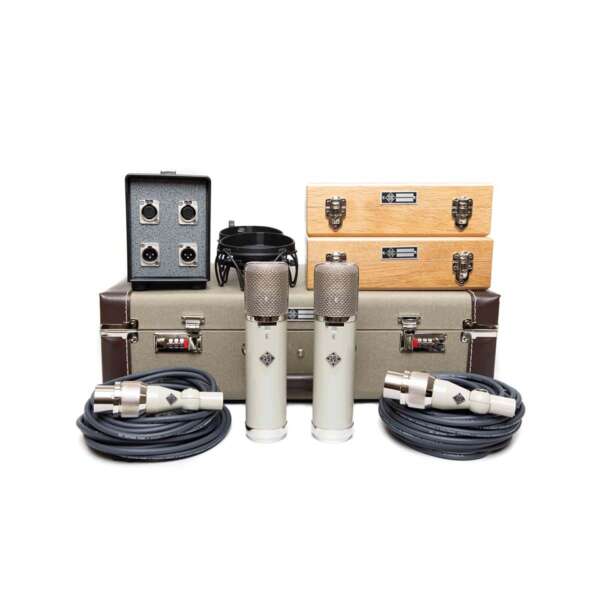

Telefunken ELA M 251E Stereo Set Large-diaphragm Tube Condenser Microphone

2,150,733 (Incl. GST) 2,043,196 (Incl. GST)

  • Large-diaphragm Tube Condenser Mic stereo set with Cardioid, Omni, and Figure-8 polar patterns

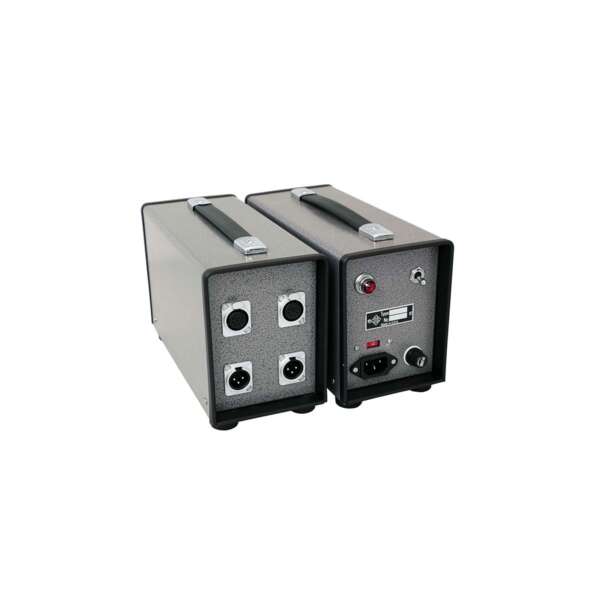

  • M 950ES Dual Tube Microphone Power Supply

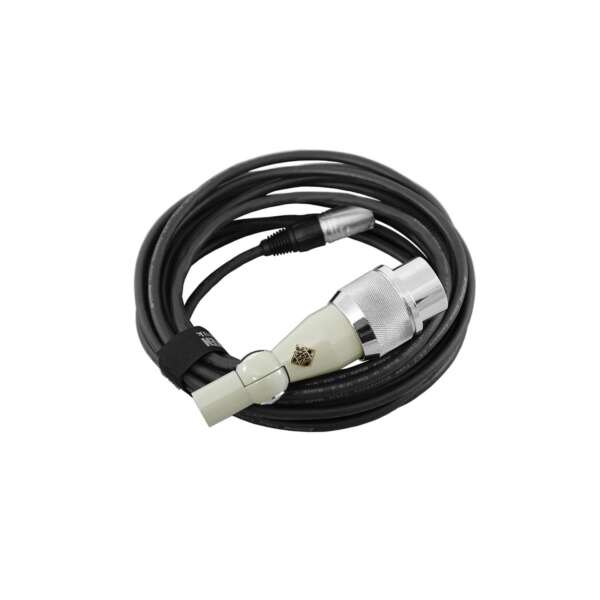

  • 2x M 850E 25’ Sommer tube microphone cables
  • Rycote Shockmount

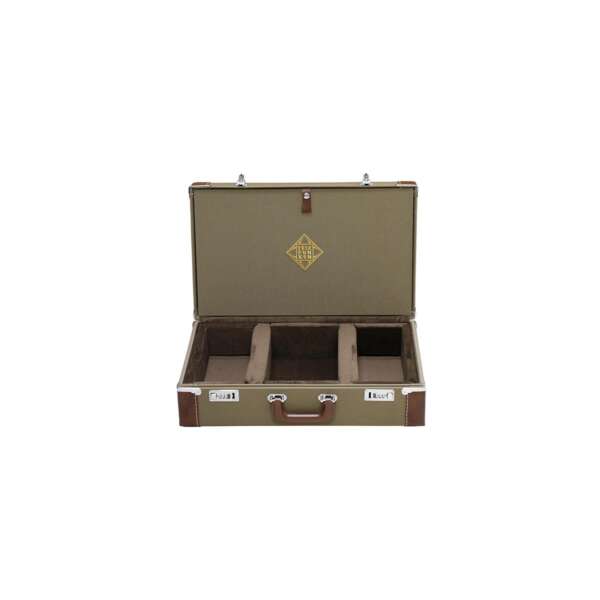

  • FC50S Dual Microphone System Flight Case for Telefunken ELA M 251E Stereo Set
  • 2x WB50 wooden microphone boxes

Available on backorder

SKU: FLQL3 Category:

Description

TELEFUNKEN Elektroakustik is proud to offer matched stereo set of their ELA M 251E large diaphragm tube microphone, featuring a custom dual power supply capable of powering both microphones at one time, and a special locking flight case that will carry both sets of microphones, cables, wooden boxes, and the dual power supply.

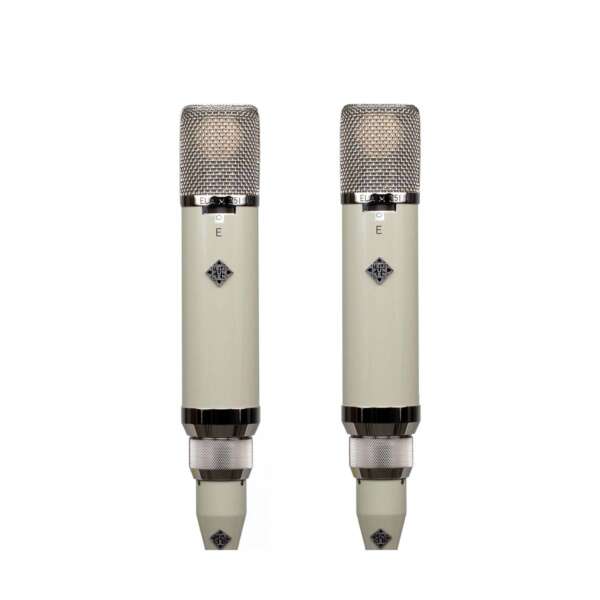

The ELA M 251E is arguably the greatest large diaphragm tube microphone ever built. Sought after by the world’s best recording engineers, producers, and musicians in the know, the ELA M 251E offers a real-life sonic characteristic second to no other recording tool or microphone. The microphone features a new CK12 capsule (built from the original manufacturer’s technical specifications), a European-made output transformer built to match the original, and a microphone-grade GE JAN 6072a vacuum tube.

Stereo microphone techniques are often used for recording classical music and large signal sources like orchestra, choirs, and large chamber groups. They can also effectively be used on drum overheads, acoustic guitars, piano, and percussion. The TELEFUNKEN ELA M 251E Stereo Set will allow versed recording engineers a variety of stereo recording techniques, including X/Y coincidental pairs when utilizing the mics in their cardioid patterns, or A/B spaced pairs while using the mics in either cardioid or omni. The option of a Blumlein pair is also available with both microphones set to figure of 8, as well as the traditional M/S (mid / side) technique when using one mic in cardioid and the other in figure of 8.

Every component in each of the two TELEFUNKEN ELA M 251E microphones is hand-selected, allowing as close a match as is possible between each system. Capsules are tuned to each other; transformers and tube are tested for matched gain and frequency response. These sets offer the user the knowledge and comfort that the tools they are using will give identical responses for their most important stereo recording.

Technical Specifications of Telefunken ELA M 251E Stereo Set

  • Type: Vacuum Tube Condenser
  • Polar Pattern: Cardioid, Omnidirectional, Figure-8
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: External Power Supply
  • Capsule: TELEFUNKEN Elektroakustik CK12 – Edge Terminated Large Diaphragm
  • Tube: TELEFUNKEN Elektroakustik 6072A
  • Transformer: Haufe T14/1
  • Sensitivity: 17 mV/Pa, ±1 dB
  • THD at 1kHZ at 1Pa (Amplifier): < 0.2%
  • Output Impedance: 200 Ω
  • Maximum SPL (for 1% THD): 130 dB
  • S/N Ratio: 85 dBA
  • Self Noise (Amplifier): 9 dBA
  • Dimensions: 216 mm L x 50 mm Dia
  • Weight: 596 g

Included Accessories

Each Telefunken ELA M 251E Stereo Set comes complete with a dual M950ES power supply, two M850E 25’ dual-shielded Somner tube microphone cables, two WB50 wooden microphone boxes, and an FC50S locking flight case.


Buy Telefunken ELA M 251E Stereo Set at the best price in India from Audempire.

Additional information

Weight0.596 kg
Dimensions1.968 × 1.968 × 8.503 in
Microphone Type

Vacuum Tube Condenser

Polar Pattern

Cardioid, Figure-8, Omnidirectional

Diaphragm Size

1" (25.4mm)

Frequency Response

20Hz – 20kHz

Maximum Peak SPL

130dB SPL (1% THD)

Output Load Impedance

200 Ω

Tube

TELEFUNKEN Elektroakustik 6072a

Capsule

CK12 – Edge Terminated Large Diaphragm

Transformer

Haufe T14/1

Sensitivity

17 mV/Pa

Signal-to-Noise Ratio

85 dBA

Self Noise

9 dbA

Power Supply

External M 950ES Power Supply

Connector

XLR

Brand

Telefunken
