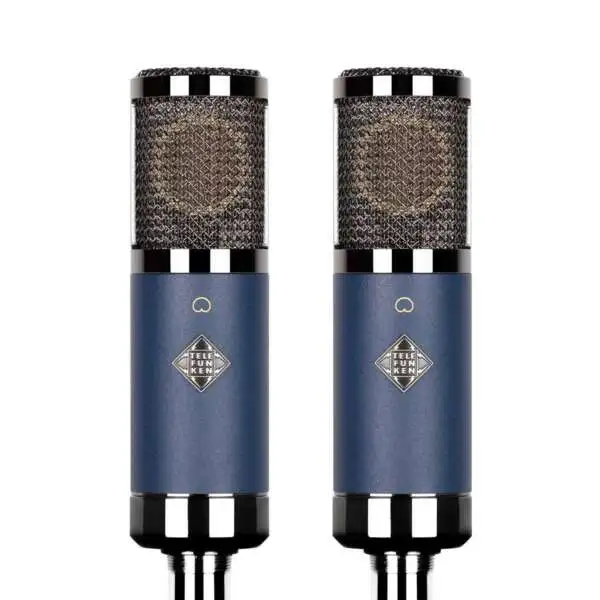

Telefunken TF11 FET Stereo Set Large-diaphragm Condenser Microphone

173,854 (Incl. GST) 165,161 (Incl. GST)

  • Large-diaphragm FET Condenser Microphone
  • Cardioid polar pattern
  • High SPL handling, low noise phantom-powered FET amplifier
  • CK12-style capsule and UK-made OEP/Carnhill transformer
  • Open and detailed tone with fast transient response
SKU: 6G474 Category:

Description

The Telefunken TF11 FET Stereo Set provides a beautifully open and realistic stereo image, ideal for a studio or stage. Blending an Austrian-inspired voicing similar to the legendary C12 with modern FET high performance, the Cardioid-only TF11 features a beautifully open and detailed frequency response with an exceptionally fast transient response, high SPL handling, and low self-noise.

When used as a stereo pair, the TF11 provides a very realistic sound stage with impressive depth and clarity. The compact, phantom-powered TF11 is versatile, portable, and dependable for all recording environments from home to studio to stage.  Hand-assembled and precision matched in the USA, the Telefunken TF11 FET  Stereo Set features matched CK12-style edge terminated capsules, premium through-hole components, discrete JFET amplifier hand-tuned for matched gain and noise, and custom UK-made OEP/Carnhill output transformers.

Key Features of Telefunken TF11 FET Stereo Set

  • Cardioid polar pattern
  • Compact travel and budget-friendly design
  • Open and detailed tone with fast transient response
  • Designed and assembled by hand in the USA
  • High SPL handling, low noise phantom-powered FET amplifier
  • CK12-style capsule and UK-made OEP/Carnhill transformer

Applications

  • Live Sound: Drums, Piano, Acoustic Instruments
  • Vocals: Pop, Rock
  • Drums: Overheads
  • Acoustic Guitar
  • Cello, Upright Bass
  • Percussion

Included Accessories

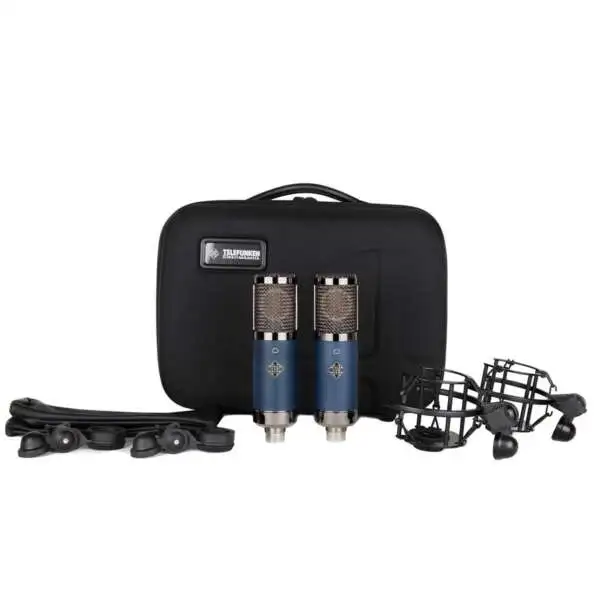

Each TF11 Stereo Set system comes with (2x) M 703 Elastic Shock Mounts, (2x) M 782 Stand Mounts, (2x) MS01 Microphone Sleeves, and a ZC11S Zipper Case.

Technical Specifications of Telefunken TF11 FET Stereo Set

  • Type: FET Condenser
  • Polar Pattern: Cardioid
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: +48V Phantom Power
  • Capsule: TK51S – Edge Terminated Large Diaphragm, Single Membrane
  • Tube: n/a
  • Transformer: OEP/Carnhill T218
  • Sensitivity: 14 mV/Pa, ±1 dB
  • THD at 1kHZ at 1Pa (Amplifier): < 0.01%
  • Output Impedance: 110 Ω
  • Maximum SPL (for 1% THD): > 135 dB
  • S/N Ratio: 90 dBA
  • Self Noise (Amplifier): 4 dBA
  • Dimensions: 175 mm L x 46 mm Dia
  • Weight: 545 g
  • Included Accessories: Shock Mount, Stand Mount, Mic Sleeve, Mic Case

Buy Telefunken TF11 FET Large-diaphragm Condenser Microphone at the best price in India from Audempire.

Additional information

Weight0.545 kg
Dimensions1.81 × 1.81 × 6.88 in
Microphone Type

FET Condenser

Mono/Stereo

Stereo Pair

Polar Pattern

Cardioid

Frequency Response

20Hz-20kHz (±3dB)

Maximum Peak SPL

135dB SPL

Output Load Impedance

110 Ω

Sensitivity

14mV/Pa

Signal-to-Noise Ratio

90 dBA

Self Noise

4 dBA

Capsule

Single Membrane, TK51S – Edge Terminated Large Diaphragm

Transformer

OEP/Carnhill T218

Connector

XLR

Power Source

48V phantom power

Included Accessories

Shockmount, Stand Mount

Brand

Telefunken
