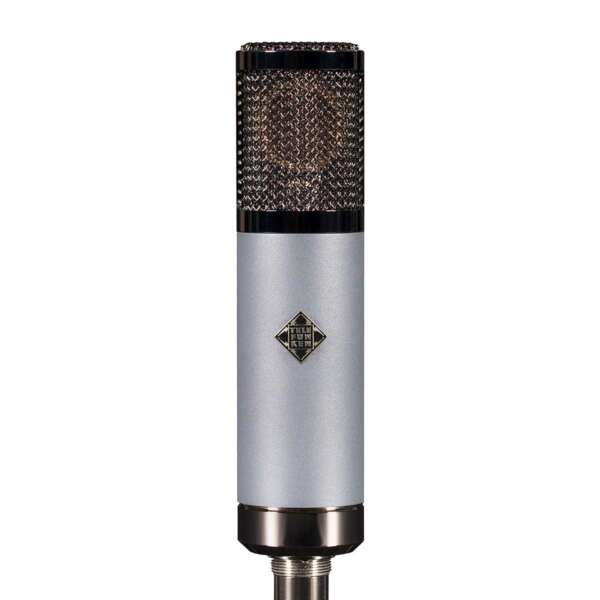

Telefunken TF51 Large-diaphragm Tube Condenser Microphone

181,553 (Incl. GST) 172,475 (Incl. GST)

  • Large-diaphragm Tube Condenser Microphone with 3 Polar Patterns
  • Open and detailed frequency response
  • Airy and smooth top end, reminiscent of the ELA M 251E
  • Balanced low end and natural mid-range
  • Hand-assembled in the USA
  • CK12-style capsule and Haufe transformer, similar to the C12 and 251E
SKU: 69XMP Category:

Description

The Telefunken TF51 is a fresh take on the “Austrian” microphone sound associated with the TELEFUNKEN ELA M 251E and C12. The TF51 continues this legacy, exhibiting a smooth midrange and airy top end, capturing every nuance in pleasant detail. This is a reliable first choice for stand-out vocals, acoustic instruments, and percussion.

Circuit Design

This lifelike fidelity is created with high-quality components based off these inspirations. The 6072A vacuum tube (also found in our ELA M 251E and C12) is mated with an edge-terminated style capsule similar to the historic CK12. The output transformer is a custom German-made Haufe transformer, the original manufacturer for TELEFUNKEN. This attention to detail gives the Telefunken TF51 a beautifully open and smooth sonic profile.

Key Features of Telefunken TF51

  • Open and detailed frequency response
  • Airy and smooth top end, reminiscent of the ELA M 251E
  • Balanced low end and natural mid-range
  • Hand-assembled in the USA
  • CK12-style capsule and Haufe transformer, similar to the C12 and 251E

Applications

  • Female vocals, Pop vocals
  • Acoustic guitar
  • Drum overheads
  • Violin
  • Mandolin
  • Grand piano

Audio Comparison

Listen to the distinct voices of the Alchemy Microphone Series; the “Copperhead” sound of the TF29 and TF39, the “German” voiced TF47, and the “Austrian” voiced TF51. Compare the sonic characteristics of each voice on classic studio applications like drum overheads, guitar cabinets, and vocals.

Accessories

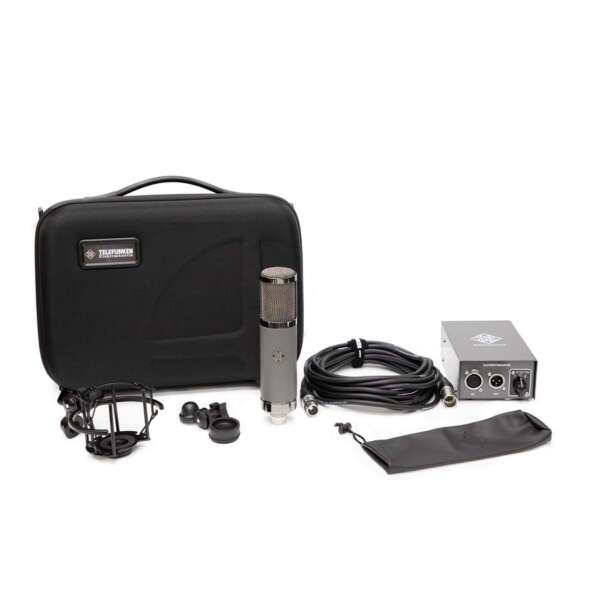

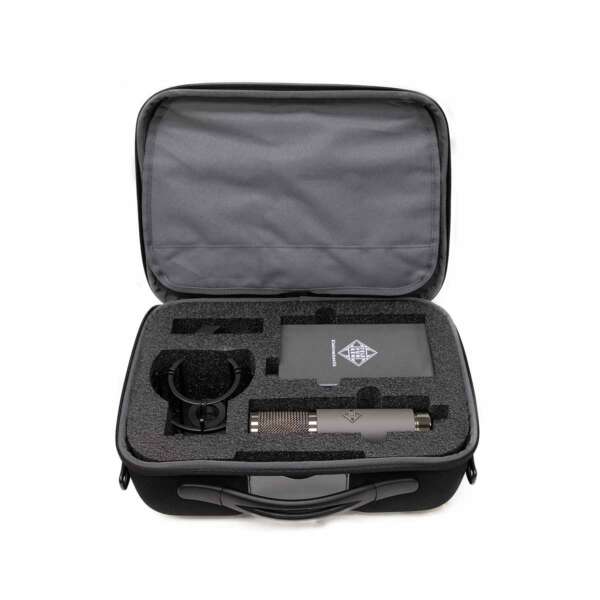

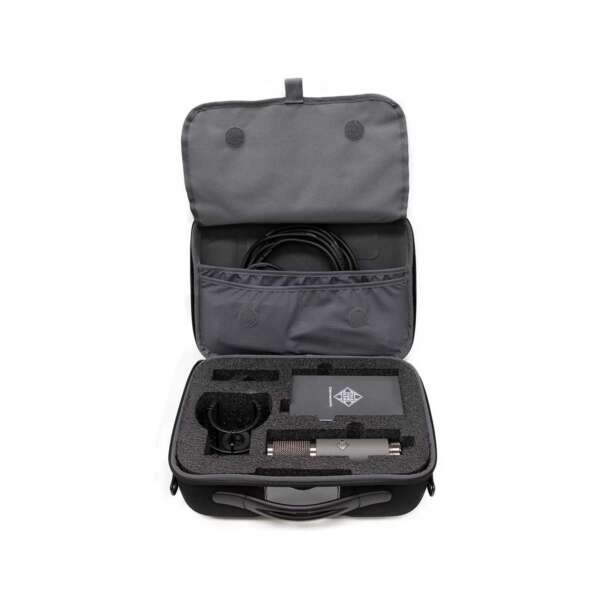

Every TF51 microphone system comes with a multi-pattern M 903 Power Supply, M 803 Tube Microphone Cable, ZC03 Shell Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.

Technical Specifications of Telefunken TF51

  • Type: Vacuum Tube Condenser
  • Polar Pattern: Cardioid, Omnidirectional, Figure-8
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: External Power Supply
  • Capsule: TK51 Edge Terminated Large Diaphragm
  • Tube: TELEFUNKEN Elektroakustik 6072a
  • Transformer: Haufe T31
  • Sensitivity: 19 mV/Pa, ±1 dB
  • THD at 1kHZ at 1Pa (Amplifier): < 0.4%
  • Output Impedance: < 300 Ω
  • Maximum SPL (for 1% THD): 128 dB
  • S/N Ratio: 86 dBA
  • Self Noise (Amplifier): 8 dBA
  • Dimensions: 200 mm L x 46 mm Dia
  • Weight: 615 g
  • Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case

 Buy Telefunken TF51 Large-diaphragm Tube Condenser Microphone at the best price in India from Audempire.

Additional information

Weight0.615 kg
Dimensions1.81 × 1.81 × 7.87 in
Microphone Type

Vacuum Tube Condenser

Mono/Stereo

Mono

Polar Pattern

Cardioid, Figure-8, Omnidirectional

Diaphragm Size

1.04" (26.5mm)

Frequency Response

20Hz – 20kHz

Maximum Peak SPL

128dB SPL (1% THD)

Output Load Impedance

<300Ω

Signal-to-Noise Ratio

86 dBA

Sensitivity

19 mV/Pa

Self Noise

8 dBA

Capsule

TK51 Edge Terminated Large Diaphragm

Tube

TELEFUNKEN Elektroakustik 6072a

Transformer

Haufe T31

Color

Chrome, Gray

Power Supply

External M 903 power supply

Connector

3-pin XLR (power supply), 7-pin XLR (mic)

Included Accessories

Carrying Case, Mic Cable, Mic Pouch, Shockmount, Stand Mount

Brand

Telefunken
