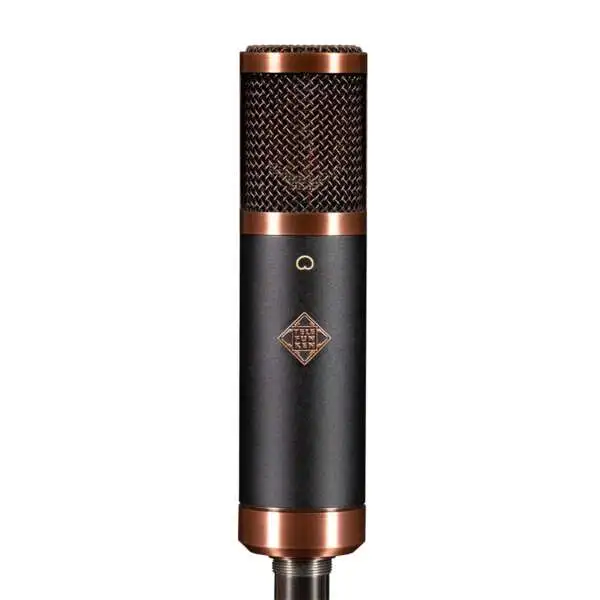

Telefunken TF29 Copperhead Large-diaphragm Tube Condenser Microphone

124,056 (Incl. GST) 117,853 (Incl. GST)

  • Large-diaphragm Tube Condenser Mic
  • Cardioid Polar Pattern
  • Stand out antique copper finish
  • Premium EU-made Lundahl transformer
  • 7-pin Microphone Cable
  • Designed and assembled by hand in the USA
SKU: S819I Category:

Description

The TF29 Copperhead is an evolution of the CU-29 Copperhead, an original TELEFUNKEN Elektroakustik design that garnered fans for its natural and non-hyped tonality and unparalleled “quality for price”. The TF29 continues this reputation of outstanding sonic performance and value. It’s a workhorse microphone, accurately and honestly capturing vocals, acoustic and electric guitar, drums, and nearly any source put in front of it.

Circuit Design

The Telefunken TF29 Copperhead features a new old stock American-made 5654W vacuum tube, an all-brass K67-style capsule, and a premium Swedish-made Lundahl output transformer. These components create a balanced frequency response and natural tonality, making the TF29 a trusty go-to choice.

Key Features of Telefunken TF29 Copperhead

  • Designed and assembled by hand in the USA
  • Pleasant, natural mid-range
  • Extended low-frequency response
  • Stand out antique copper finish
  • Premium EU-made Lundahl transformer

Applications

  • Natural vocals, bluegrass, folk, and Americana styles
  • Electric guitar
  • Drums: Kick Out, Overheads, & Room
  • Saxophone
  • Upright piano
  • Banjo

Audio Comparison

Listen to the distinct voices of the Alchemy Microphone Series; the “Copperhead” sound of the TF29 and TF39, the “German” voiced TF47, and the “Austrian” voiced TF51. Compare the sonic characteristics of each voice on classic studio applications like drum overheads, guitar cabinets, and vocals.

Accessories

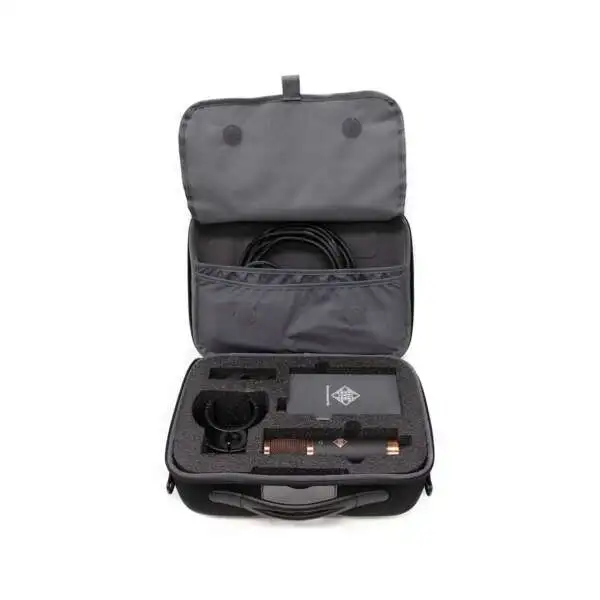

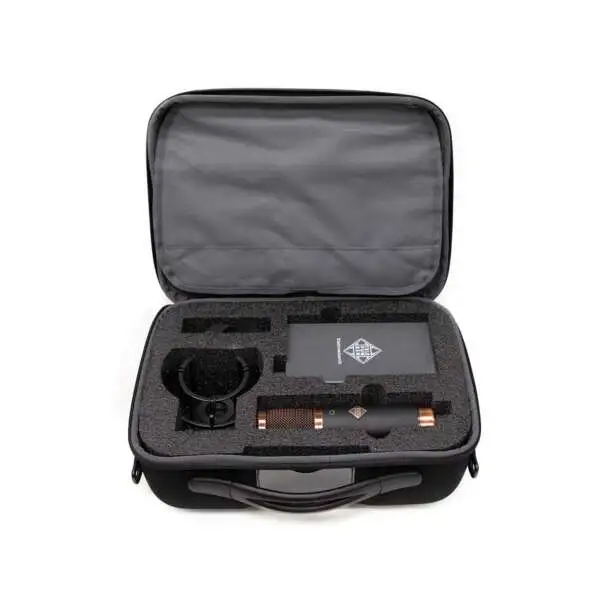

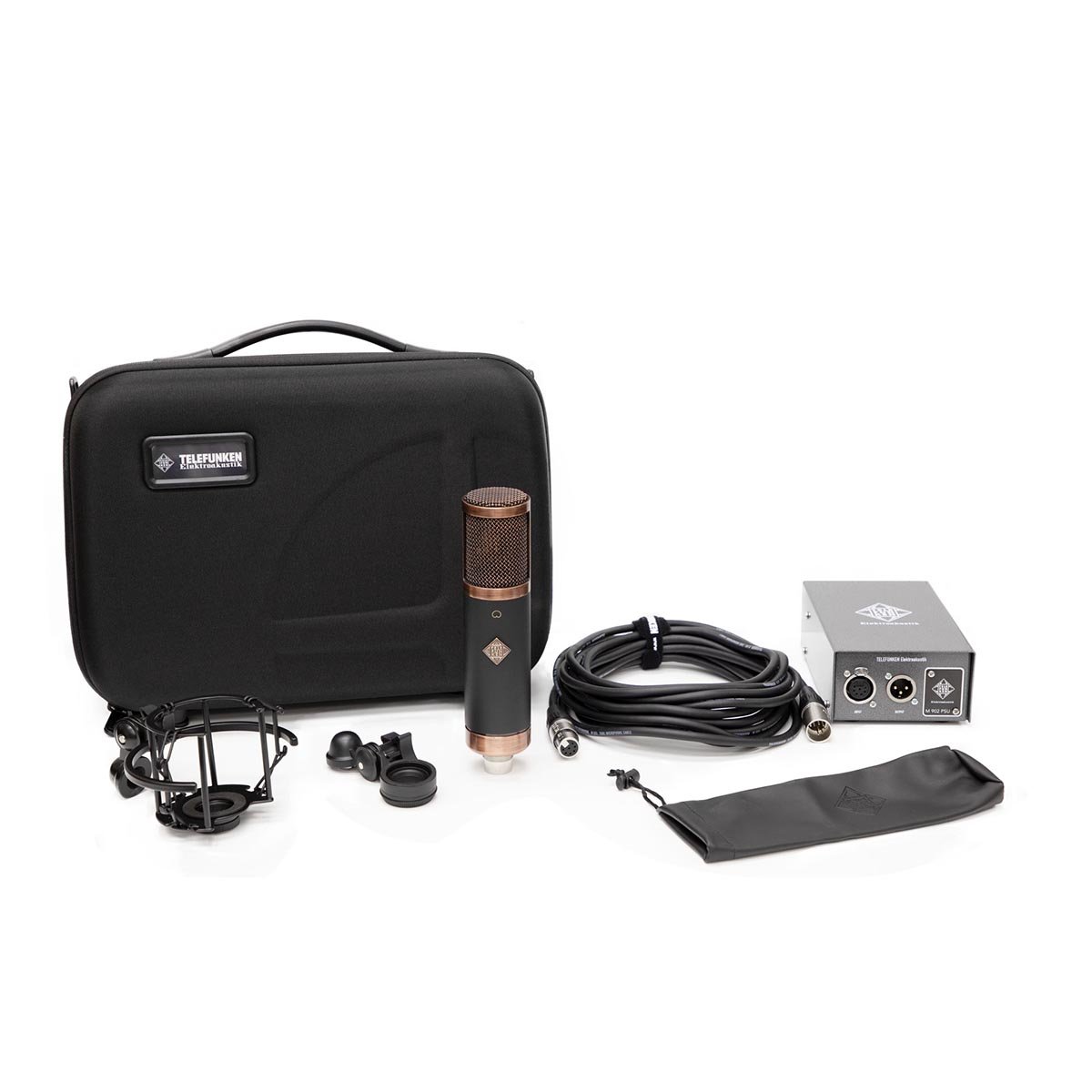

Every TF29 Copperhead microphone system comes with a fixed pattern M 902 Power Supply, M 803 Tube Microphone Cable, ZC03 Shell Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.

Technical Specifications of Telefunken TF29 Copperhead

  • Type: Vacuum Tube Condenser
  • Polar Pattern: Cardioid
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: External Power Supply
  • Capsule: TK67S Center Terminated Large Diaphragm, Single Membrane
  • Tube: NOS GE 5654W
  • Transformer: Lundahl LL1935
  • Sensitivity: 17 mV/Pa, ±1 dB
  • THD at 1kHZ at 1Pa (Amplifier): < 0.3%
  • Output Impedance: < 300 Ω
  • Maximum SPL (for 1% THD): 130 dB
  • S/N Ratio: 87 dBA
  • Self Noise (Amplifier): 7 dBA
  • Dimensions: 200 mm L x 46 mm Dia
  • Weight: 650 g
  • Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case

Buy Telefunken TF29 Copperhead Large-diaphragm Tube Condenser Microphone at the best price in India from Audempire.

Additional information

Weight0.650 kg
Dimensions1.81 × 1.81 × 7.87 in
Microphone Type

Vacuum Tube Condenser

Mono/Stereo

Mono

Polar Pattern

Cardioid

Diaphragm Size

1" (25.4mm)

Frequency Response

20Hz – 20kHz

Maximum Peak SPL

130dB SPL (1% THD)

Output Load Impedance

<300Ω

Signal-to-Noise Ratio

87dB

Capsule

Single Membrane, TK67S Center Terminated Large Diaphragm

Transformer

Lundahl LL1935

Sensitivity

17 mV/Pa

Distortion

< 0.3% THD at 1kHZ at 1Pa (Amplifier)

Self Noise

7dB

Tube

NOS GE 5654W

Color

Blue, Copper

Power Supply

External M 902 power supply

Connector

3-pin XLR (power supply), 7-pin XLR (mic)

Included Accessories

Carrying Case, Mic Cable, Mic Pouch, Shockmount, Stand Mount

Brand

Telefunken
