Telefunken TF39 Copperhead Deluxe Large-diaphragm Tube Condenser Microphone

153,450 (Incl. GST) 145,778 (Incl. GST)

  • Large-diaphragm Tube Condenser Mic with 3 Polar Patterns
  • Pleasant, natural mid-range
  • Stand out antique copper finish
  • Premium EU-made Lundahl transformer
  • Designed and assembled by hand in the USA
SKU: T1EI4 Category:

Description

The Telefunken TF39 Copperhead Deluxe is an expansion of the “Copperhead” sound with the addition of a dual membrane K67-style capsule, allowing for 3-pattern selection between cardioid, omnidirectional, and figure-8. This added feature set gives the TF39 greater flexibility and options in the studio. Sonically and component-wise, the two microphones are otherwise the same.

Circuit Design

The TF39 Copperhead Deluxe features a new old stock American-made 5654W vacuum tube, an all-brass K67-style capsule, and a premium Swedish-made Lundahl output transformer. These components create a balanced frequency response and natural tonality, making the TF39 a trusty go-to choice.

Key Features Telefunken TF39 Copperhead Deluxe

  • Designed and assembled by hand in the USA
  • Pleasant, natural mid-range
  • Extended low-frequency response
  • Stand out antique copper finish
  • Premium EU-made Lundahl transformer

Applications

  • Natural vocals, bluegrass, folk, and Americana styles
  • Electric guitar
  • Drums: Kick Out, Overheads, & Room
  • Saxophone
  • Upright piano
  • Banjo

Audio Comparison

Listen to the distinct voices of the Alchemy Microphone Series; the “Copperhead” sound of the TF29 and TF39, the “German” voiced TF47, and the “Austrian” voiced TF51. Compare the sonic characteristics of each voice on classic studio applications like drum overheads, guitar cabinets, and vocals.

Accessories

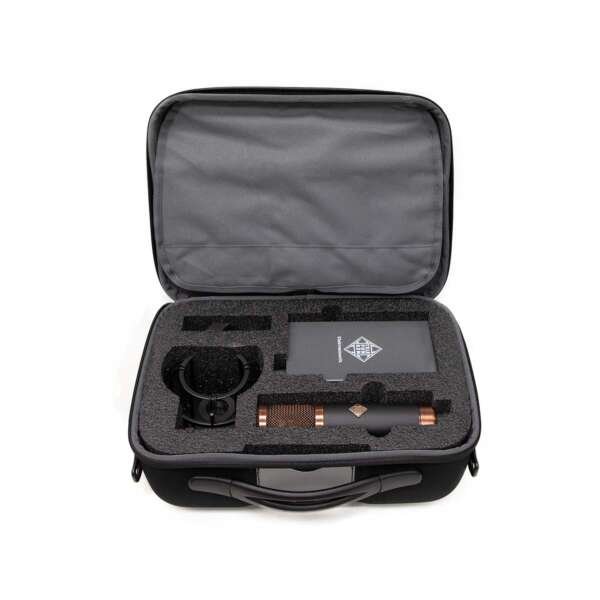

Every TF39 Copperhead Deluxe microphone system comes with a multi-pattern M 903 Power Supply, M 803 Tube Microphone Cable, ZC03 Shell Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.

Technical Specifications of Telefunken TF39 Copperhead Deluxe

  • Type: Vacuum Tube Condenser
  • Polar Pattern: Cardioid, Omnidirectional, Figure-8
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: External Power Supply
  • Capsule: TK67 Center Terminated Large Diaphragm
  • Tube: NOS GE 5654W
  • Transformer: Lundahl LL1935
  • Sensitivity: 17 mV/Pa, ±1 dB
  • THD at 1kHZ at 1Pa (Amplifier): < 0.3%
  • Output Impedance: < 300 Ω
  • Maximum SPL (for 1% THD): 130 dB
  • S/N Ratio: 87 dBA
  • Self Noise (Amplifier): 7 dBA
  • Dimensions: 200 mm L x 46 mm Dia
  • Weight: 650 g
  • Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case

Buy Telefunken TF39 Copperhead Deluxe Large-diaphragm Tube Condenser Microphone at the best price in India from Audempire.

Additional information

Weight 0.650 kg
Dimensions 1.81 × 1.81 × 7.87 in
Microphone Type

Vacuum Tube Condenser

Mono/Stereo

Mono

Polar Pattern

Cardioid, Figure-8, Omnidirectional

Diaphragm Size

1" (25.4mm)

Frequency Response

20Hz – 20kHz

Maximum Peak SPL

130dB SPL (1% THD)

Output Load Impedance

<300Ω

Signal-to-Noise Ratio

87dB

Sensitivity

17 mV/Pa

Self Noise

7 dBA

Capsule

TK67 Center Terminated Large Diaphragm

Tube

NOS GE 5654W

Transformer

Lundahl LL1935

Color

Blue, Copper

Power Supply

External M 903 power supply

Connector

3-pin XLR (power supply), 7-pin XLR (mic)

Included Accessories

Carrying Case, Mic Cable, Mic Pouch, Shockmount, Stand Mount

Brand

Telefunken
