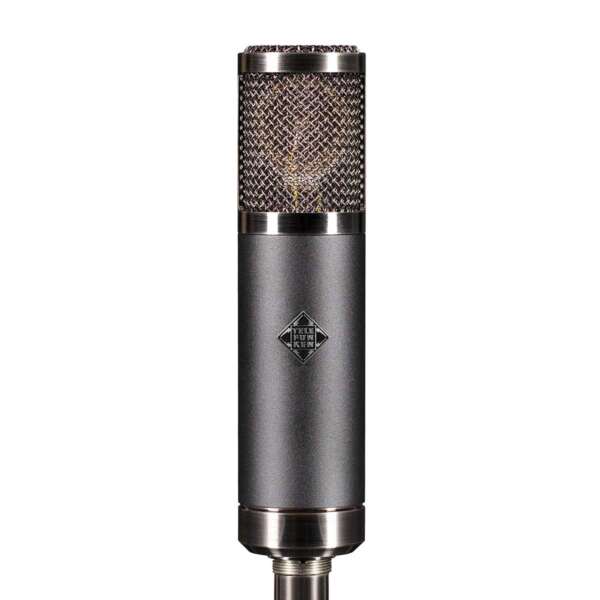

Telefunken TF47 Large-diaphragm Tube Condenser Microphone

181,553 (Incl. GST) 172,475 (Incl. GST)

  • Large-diaphragm Tube Condenser Microphone with 3 Polar Patterns
  • Forward mid-range, reminiscent of the U47
  • Smooth and detailed top end
  • Full and round low end
  • Hand-assembled in the USA
  • K47-style capsule and BV8 transformer, similar to the U47
SKU: JXI16 Category:

Description

The Telefunken TF47 is a new design based on the “German” sound, drawing inspiration from the historic U47 and M49. With a deep low end and a forward midrange, the TF47 is excellent for adding depth and presence to any source. These characteristics make it especially ideal for recording vocals, guitar amps, and drums.

Circuit Design

At the heart of the Telefunken TF47 is an all-brass K47-style capsule, new old stock 5840W vacuum tube, and a custom-made historically accurate BV8 transformer (as found in the U47). These components deliver a warm and punchy sound reminiscent of the U47 with a pleasant top-end articulation that sits perfect in a mix.

Key Features of Telefunken TF47

  • Forward mid-range, reminiscent of the U47
  • Smooth and detailed top end
  • Full and round low end
  • Hand-assembled in the USA
  • K47-style capsule and BV8 transformer, similar to the U47

Applications

  • R&B, rap or aggressive vocals, female soul vocals
  • Upright bass
  • Toms and kick out
  • Trombone
  • Cello
  • Percussion

Audio Comparison

Listen to the distinct voices of the Alchemy Microphone Series; the “Copperhead” sound of the TF29 and TF39, the “German” voiced TF47, and the “Austrian” voiced TF51. Compare the sonic characteristics of each voice on classic studio applications like drum overheads, guitar cabinets, and vocals.

Accessories

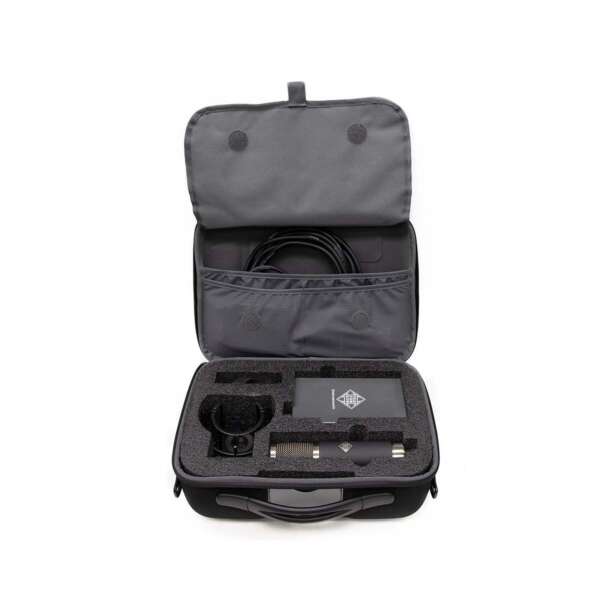

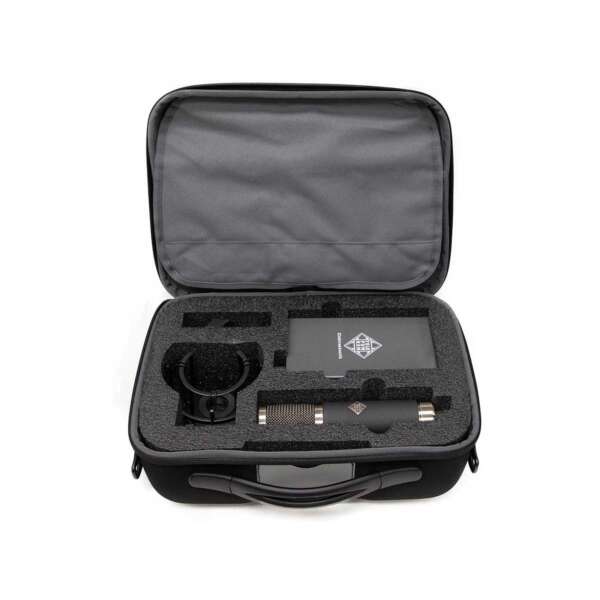

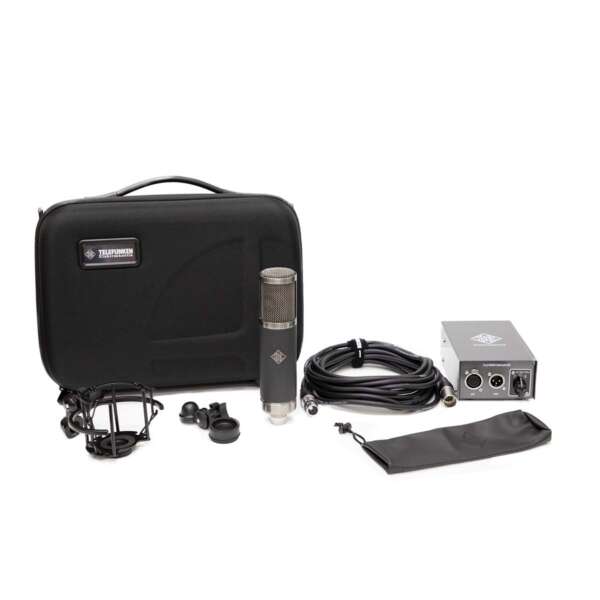

Every Telefunken TF47 microphone system comes with a multi-pattern M 903 Power Supply, M 803 Tube Microphone Cable, ZC03 Shell Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.

Technical Specifications of Telefunken TF47

  • Type: Vacuum Tube Condenser
  • Polar Pattern: Cardioid, Omnidirectional, Figure-8
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: External Power Supply
  • Capsule: TK47 Center Terminated Large Diaphragm
  • Tube: NOS Philips/Raytheon 5840W
  • Transformer: TELEFUNKEN Elektroakustik BV8
  • Sensitivity: 22 mV/Pa, ±1 dB
  • THD at 1kHZ at 1Pa (Amplifier): < 0.3%
  • Output Impedance: < 300 Ω
  • Maximum SPL (for 1% THD): 125 dB
  • S/N Ratio: 84 dBA
  • Self Noise (Amplifier): 10 dBA
  • Dimensions: 200 mm L x 46 mm Dia
  • Weight: 710 g
  • Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case

 Buy Telefunken TF47 Large-diaphragm Tube Condenser Microphone at the best price in India from Audempire.

Additional information

Weight0.710 kg
Dimensions1.81 × 1.81 × 7.87 in
Microphone Type

Vacuum Tube Condenser

Mono/Stereo

Mono

Polar Pattern

Cardioid, Figure-8, Omnidirectional

Diaphragm Size

1" (25.4mm)

Frequency Response

20Hz – 20kHz

Maximum Peak SPL

125dB SPL

Output Load Impedance

<300Ω

Signal-to-Noise Ratio

84 dBA

Sensitivity

22 mV/Pa

Self Noise

10 dBA

Capsule

TK47 Center Terminated Large Diaphragm

Tube

NOS Philips/Raytheon 5840W

Transformer

TELEFUNKEN Elektroakustik BV8

Color

Blue, Chrome

Power Supply

External M 903 power supply

Connector

3-pin XLR (power supply), 7-pin XLR (mic)

Included Accessories

Carrying Case, Mic Cable, Mic Pouch, Shockmount, Stand Mount

Brand

Telefunken
