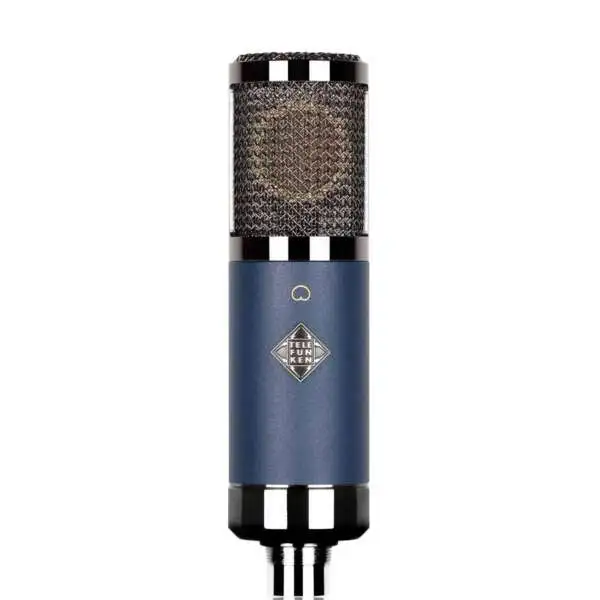

Telefunken TF11 FET Large-diaphragm Condenser Microphone

73,280 (Incl. GST) 69,616 (Incl. GST)

  • Large-diaphragm FET Condenser Microphone
  • Cardioid polar pattern
  • High SPL handling, low noise phantom-powered FET amplifier
  • CK12-style capsule and UK-made OEP/Carnhill transformer
  • Open and detailed tone with fast transient response
SKU: 366J9 Category:

Description

Blending an Austrian-inspired voicing similar to the legendary C12 with modern FET high performance, the phantom-powered Telefunken TF11 FET exhibits a beautifully open and detailed frequency response with an exceptionally fast transient response, high SPL handling, and low self-noise. The compact, cardioid-only TF11 is versatile, portable, and dependable for all recording environments from home to studio to stage.

Circuit Design

The TF11 FET features a unique combination of circuit elements shared with other TELEFUNKEN Elektroakustik designs. The CK12-style edge terminated capsule is a single-membrane version of the capsule featured in the TF51. The amplifier is a unique proprietary take on the classic FET microphone amplifier similar to the M60, coupled with a custom large format nickel-iron core transformer made in the UK by OEP/Carnhill. Premium through-hole components include UK-made polystyrene film capacitors, Nichicon Fine Gold electrolytic capacitors, and a high-performance, ultra-low-noise JFET amplifier.

Key Features of Telefunken TF11 FET

  • Cardioid polar pattern
  • Compact travel and budget-friendly design
  • Open and detailed tone with fast transient response
  • Designed and assembled by hand in the USA
  • High SPL handling, low noise phantom-powered FET amplifier
  • CK12-style capsule and UK-made OEP/Carnhill transformer

Applications

  • Live Sound: Drums, Piano, Acoustic Instruments
  • Vocals: Pop, Rock
  • Drums: Overheads
  • Acoustic Guitar
  • Cello, Upright Bass
  • Percussion

Accessories

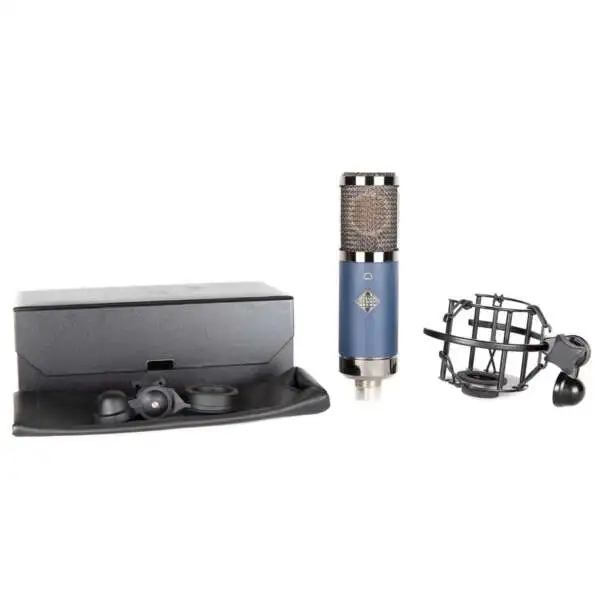

Every TF11 FET microphone system comes with an MC11 Microphone Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.

Technical Specifications of Telefunken TF11 FET

  • Type: FET Condenser
  • Polar Pattern: Cardioid
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: +48V Phantom Power
  • Capsule: TK51S – Edge Terminated Large Diaphragm, Single Membrane
  • Tube: n/a
  • Transformer: OEP/Carnhill T218
  • Sensitivity: 14 mV/Pa, ±1 dB
  • THD at 1kHZ at 1Pa (Amplifier): < 0.01%
  • Output Impedance: 110 Ω
  • Maximum SPL (for 1% THD): > 135 dB
  • S/N Ratio: 90 dBA
  • Self Noise (Amplifier): 4 dBA
  • Dimensions: 175 mm L x 46 mm Dia
  • Weight: 545 g
  • Included Accessories: Shock Mount, Stand Mount, Mic Sleeve, Mic Case

Buy Telefunken TF11 FET Large-diaphragm Condenser Microphone at the best price in India from Audempire.

Additional information

Weight0.545 kg
Dimensions1.81 × 1.81 × 6.88 in
Microphone Type

FET Condenser

Polar Pattern

Cardioid

Frequency Response

20Hz-20kHz (±3dB)

Maximum Peak SPL

135dB SPL

Output Load Impedance

110 Ω

Sensitivity

14mV/Pa

Signal-to-Noise Ratio

90 dBA

Self Noise

4 dBA

Capsule

Single Membrane, TK51S – Edge Terminated Large Diaphragm

Transformer

OEP/Carnhill T218

Connector

XLR

Power Source

48V phantom power

Included Accessories

Shockmount, Stand Mount

Brand

Telefunken
